Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

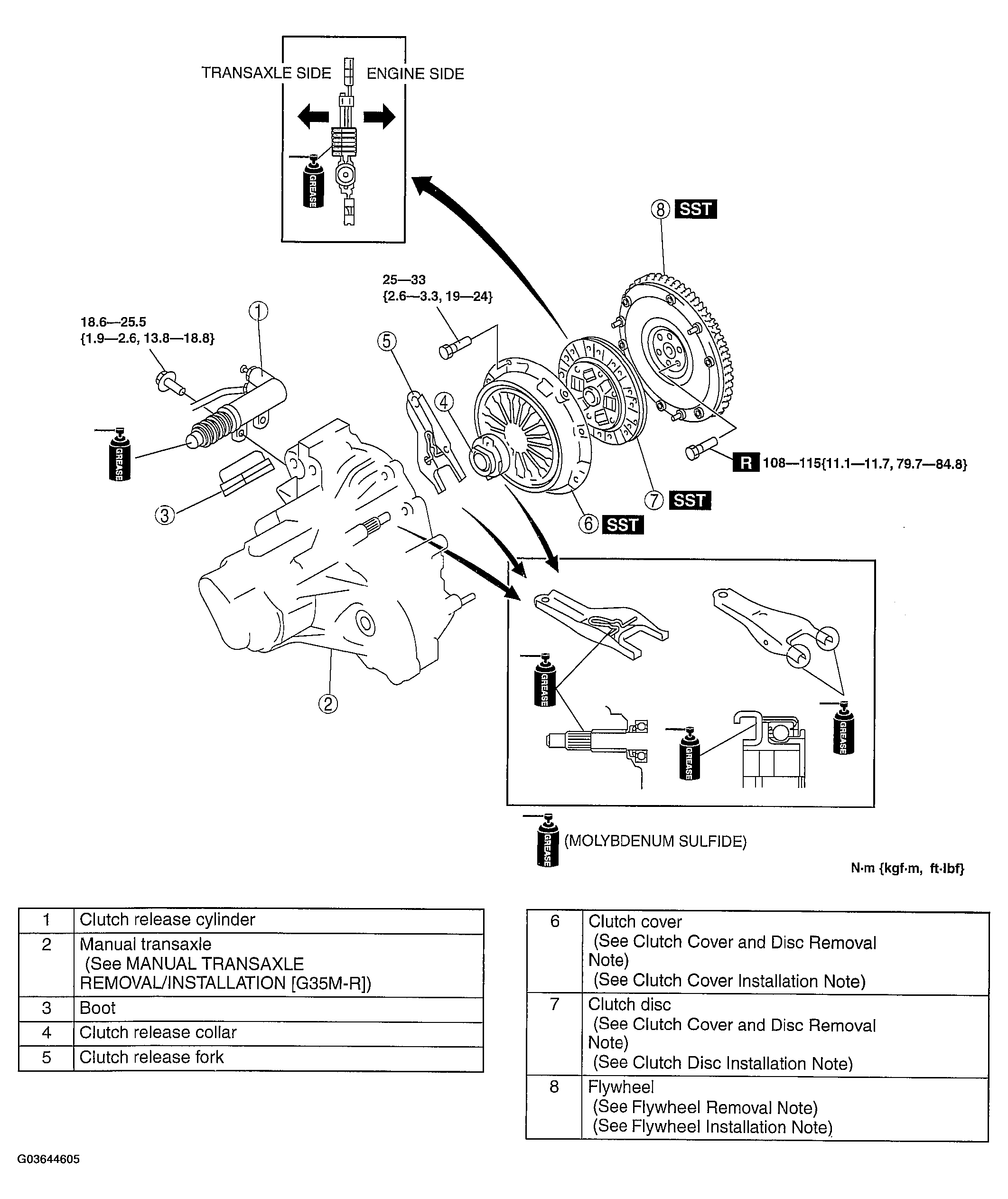

Fig 1: Clutch Unit Removal Sequence (G35M-R) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.

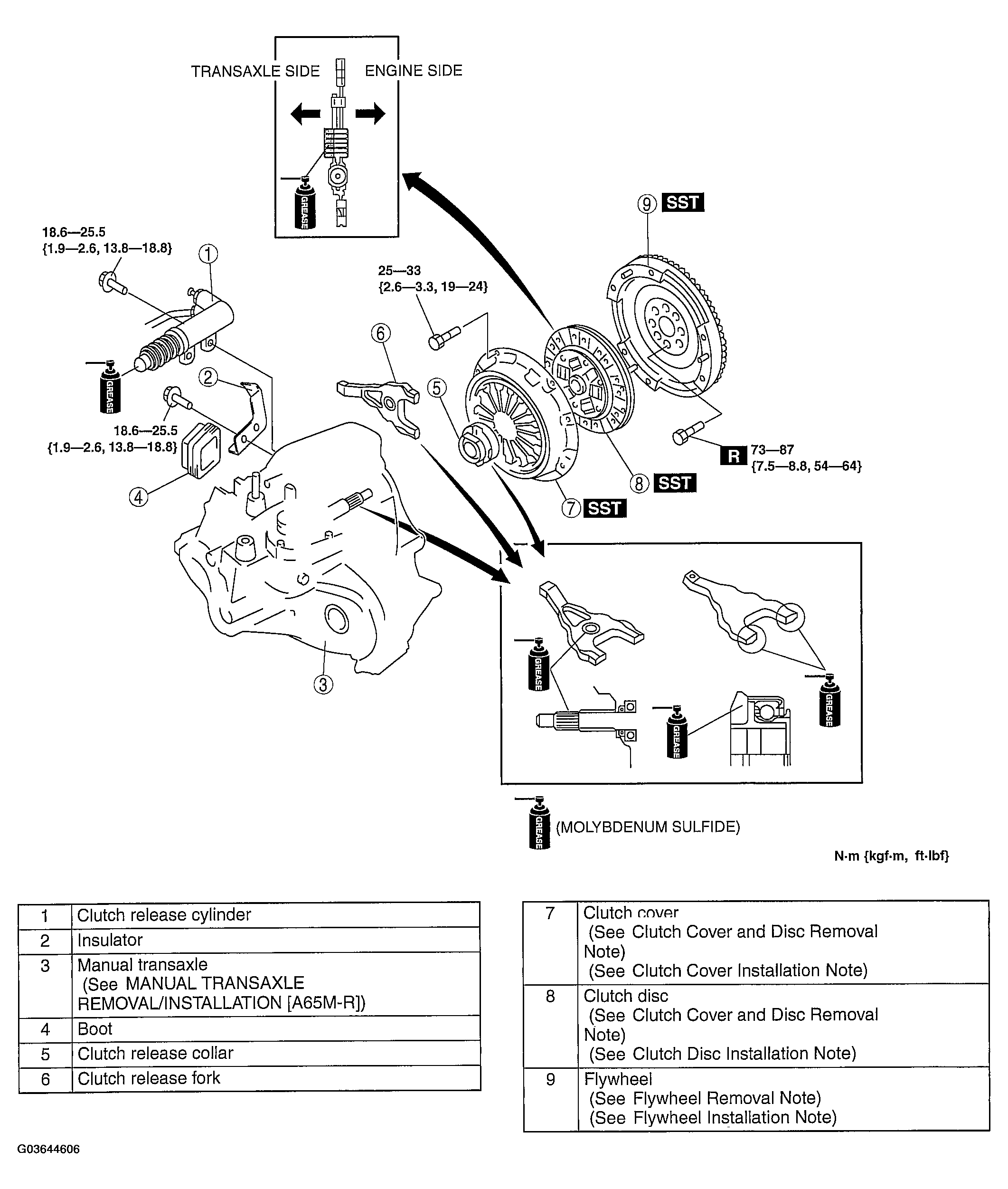

Fig 2: Clutch Unit Removal Sequence (A65M-R) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order removal.
