Flywheel Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel to the crankshaft.
Hand-tighten the new flywheel lock bolts.
Install the SST to the flywheel.
Gradually tighten the flywheel lock bolts in a crisscross pattern.

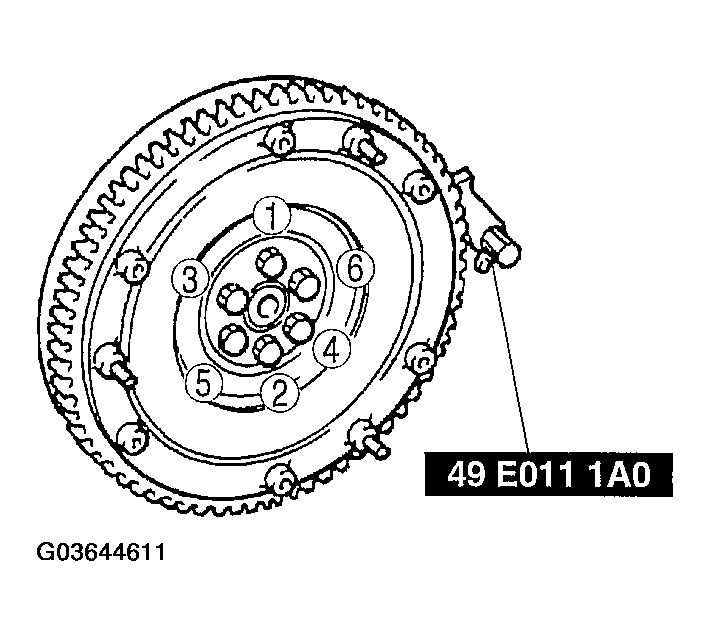

Fig 1: Flywheel Bolt Installation Sequence (G35M-R)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Flywheel Bolt Installation Sequence (A65M-R)
Courtesy of MAZDA MOTORS CORP.

Tightening torque

G35M-R manual transaxle models 108-115 N.m

{11.1-11.7 kgf.m, 79.7-84.8 ft.lbf}

A65M-R manual transaxle models

73-87 N.m {7.5-8.8 kgf.m, 54-64 ft.lbf}
