G35M-R manual transaxle models

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Tighten the bolts evenly and gradually in a crisscross pattern.

    Tightening torque

    25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

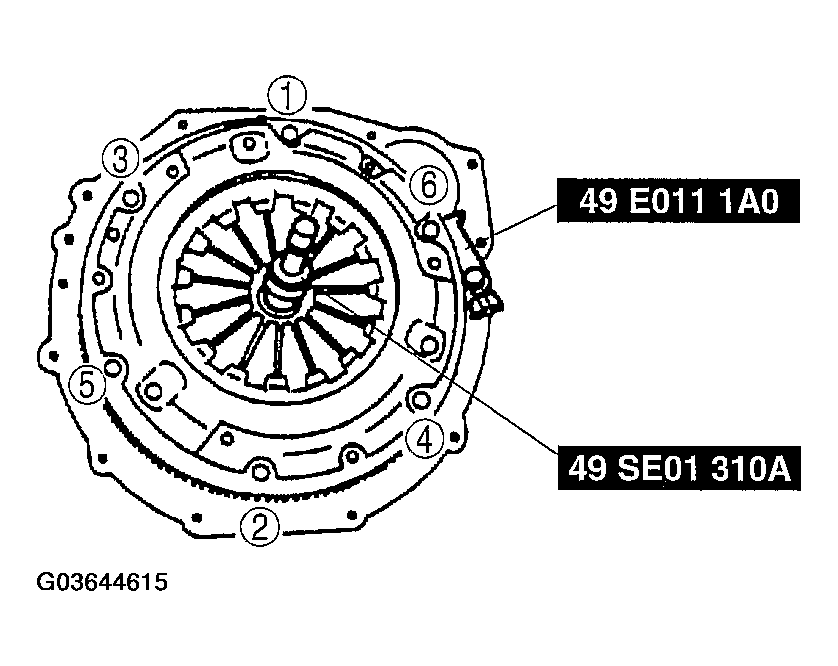

    Fig 1: Clutch Cover Bolt Tightening Sequence (G35M-R)
    G03644615Courtesy of MAZDA MOTORS CORP.
