Clutch Release Cylinder Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the under cover.
Remove in the order indicated in the table.

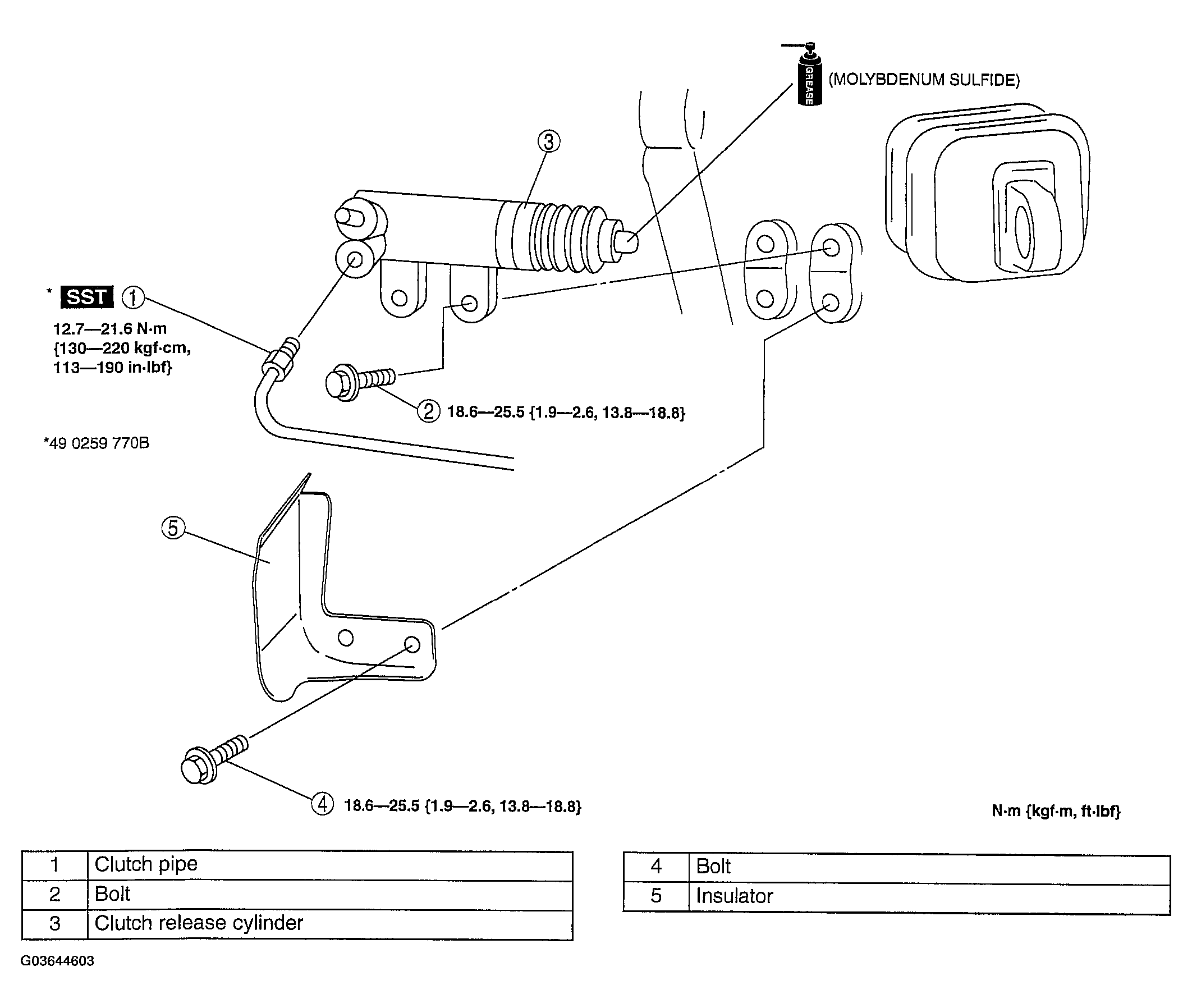

Fig 1: Clutch Release Cylinder Removal Sequence (G35M-R) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.

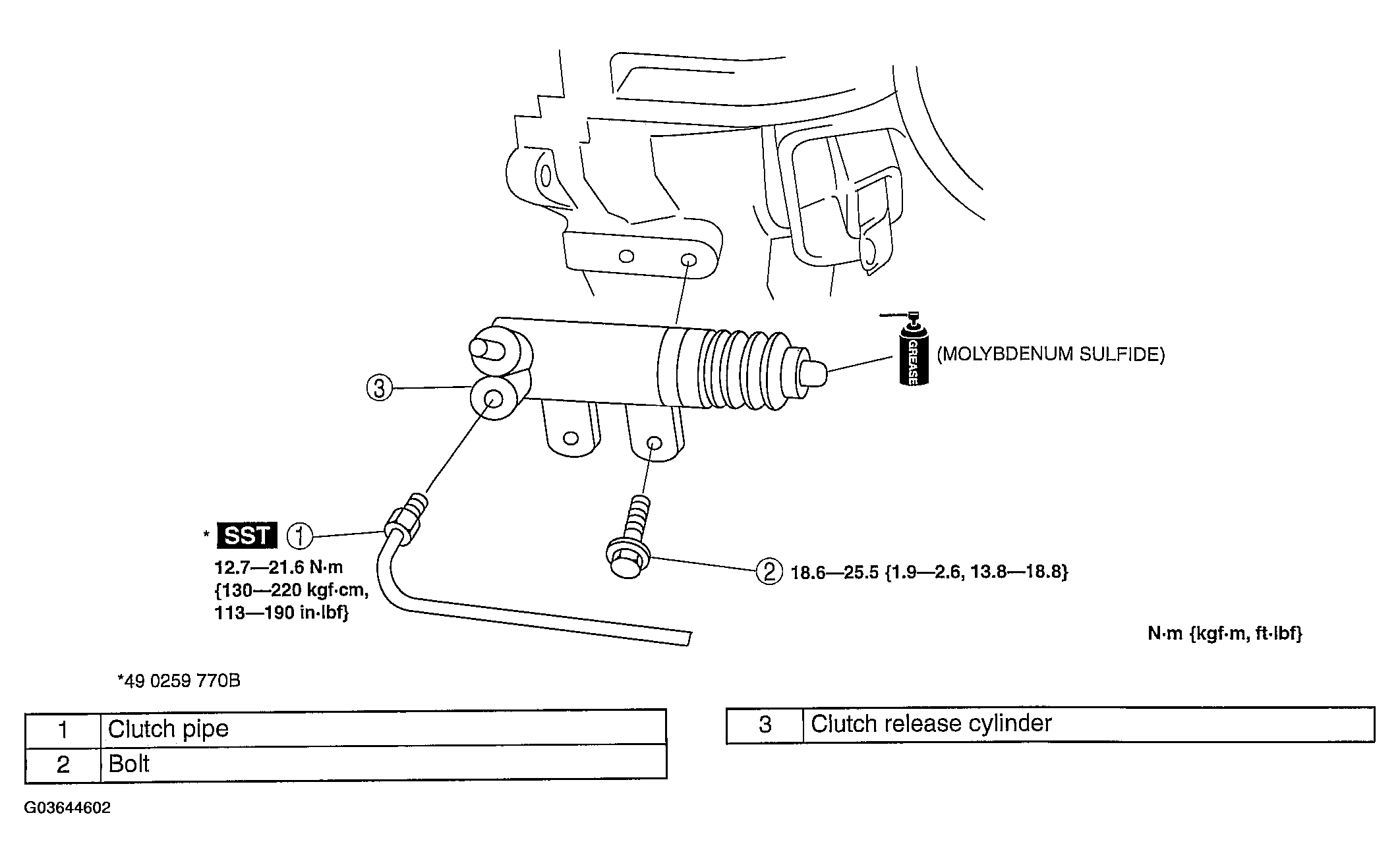

Fig 2: Clutch Release Cylinder Removal Sequence (A65M-R) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
