Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray.
Remove in the order indicated in the table.

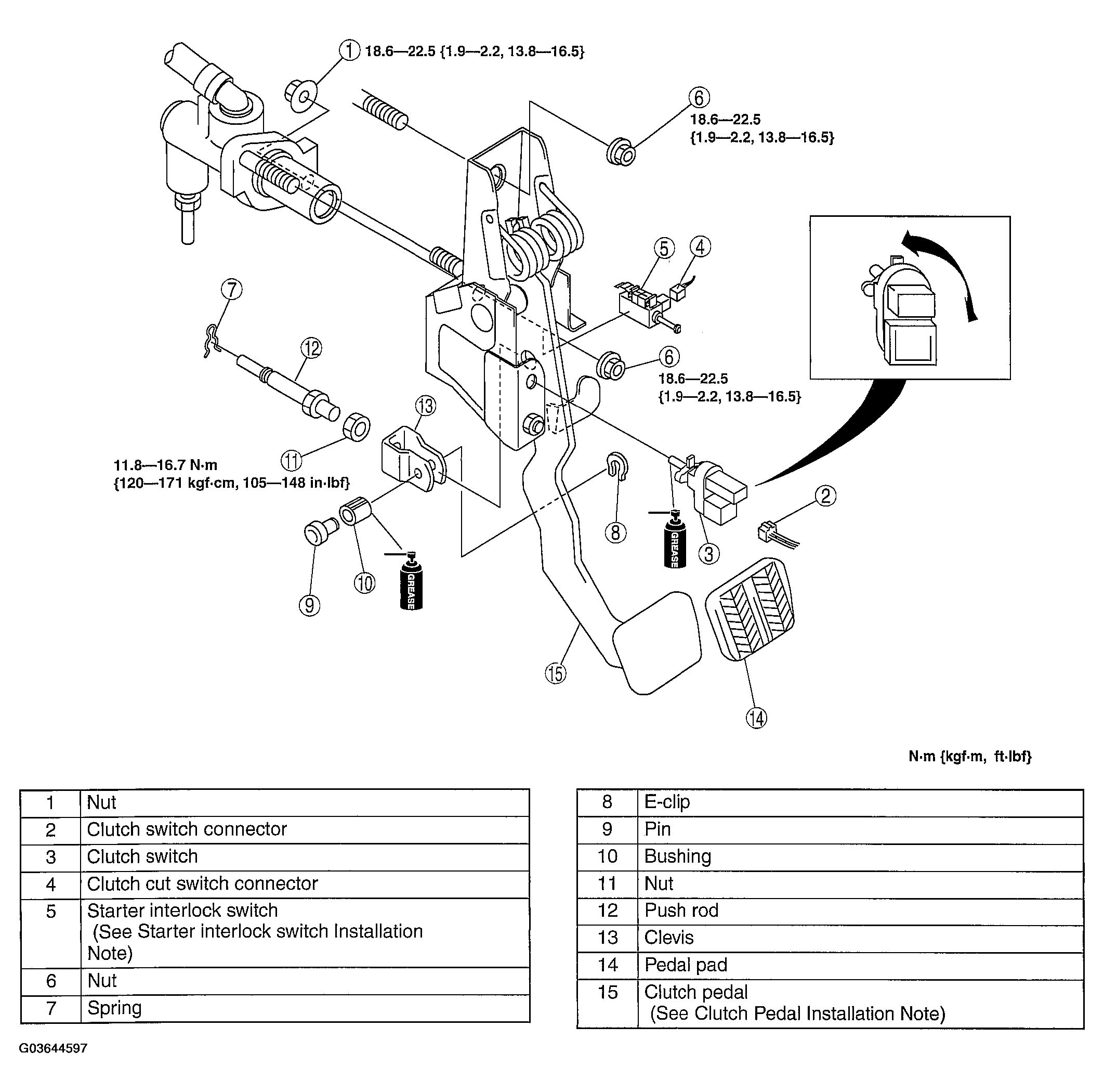

Fig 1: Clutch Pedal Removal Sequence (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, inspect the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT .)
