Quick Diagnosis Chart

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

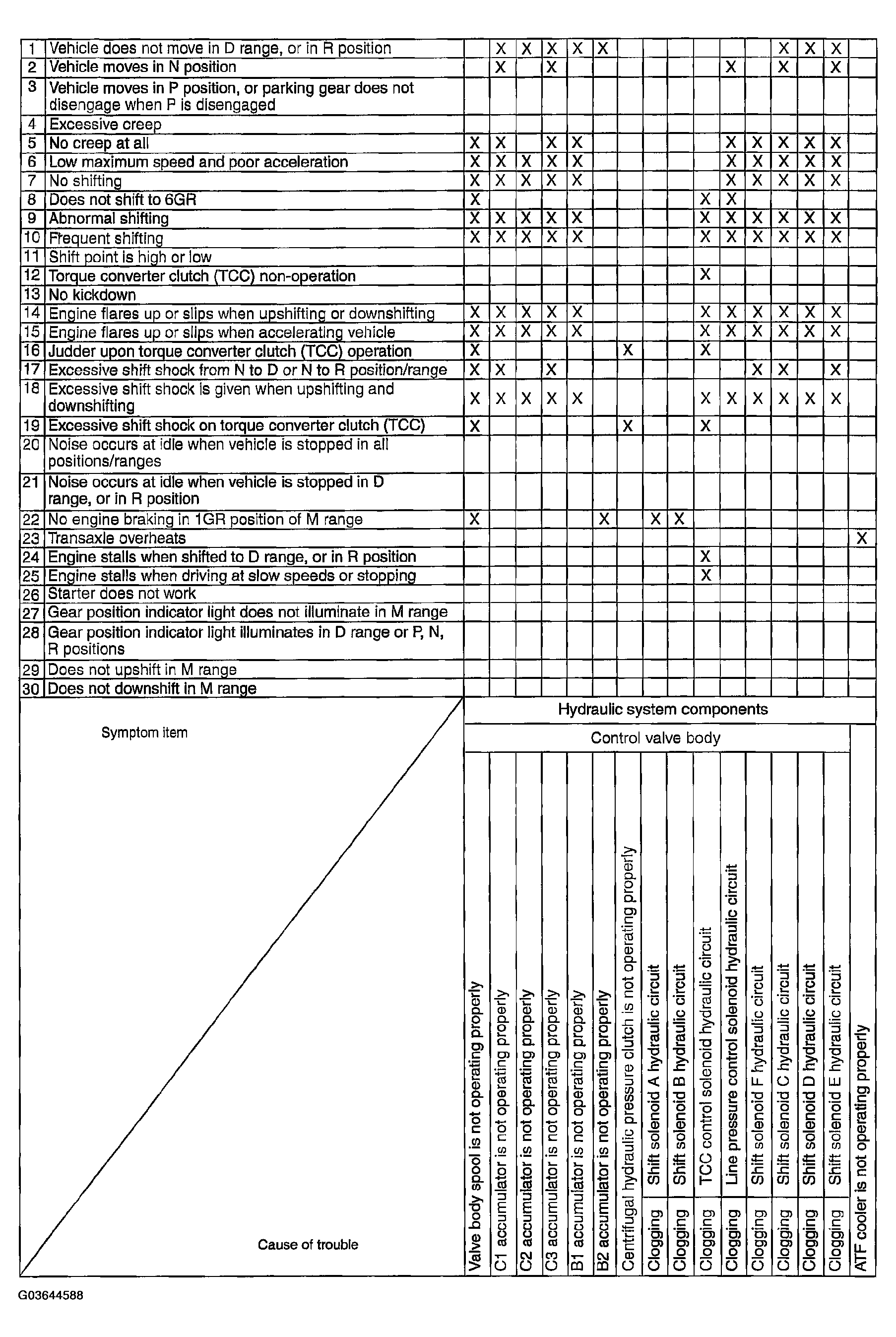

Fig 1: Quick Diagnosis Chart [AW6A-EL] (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

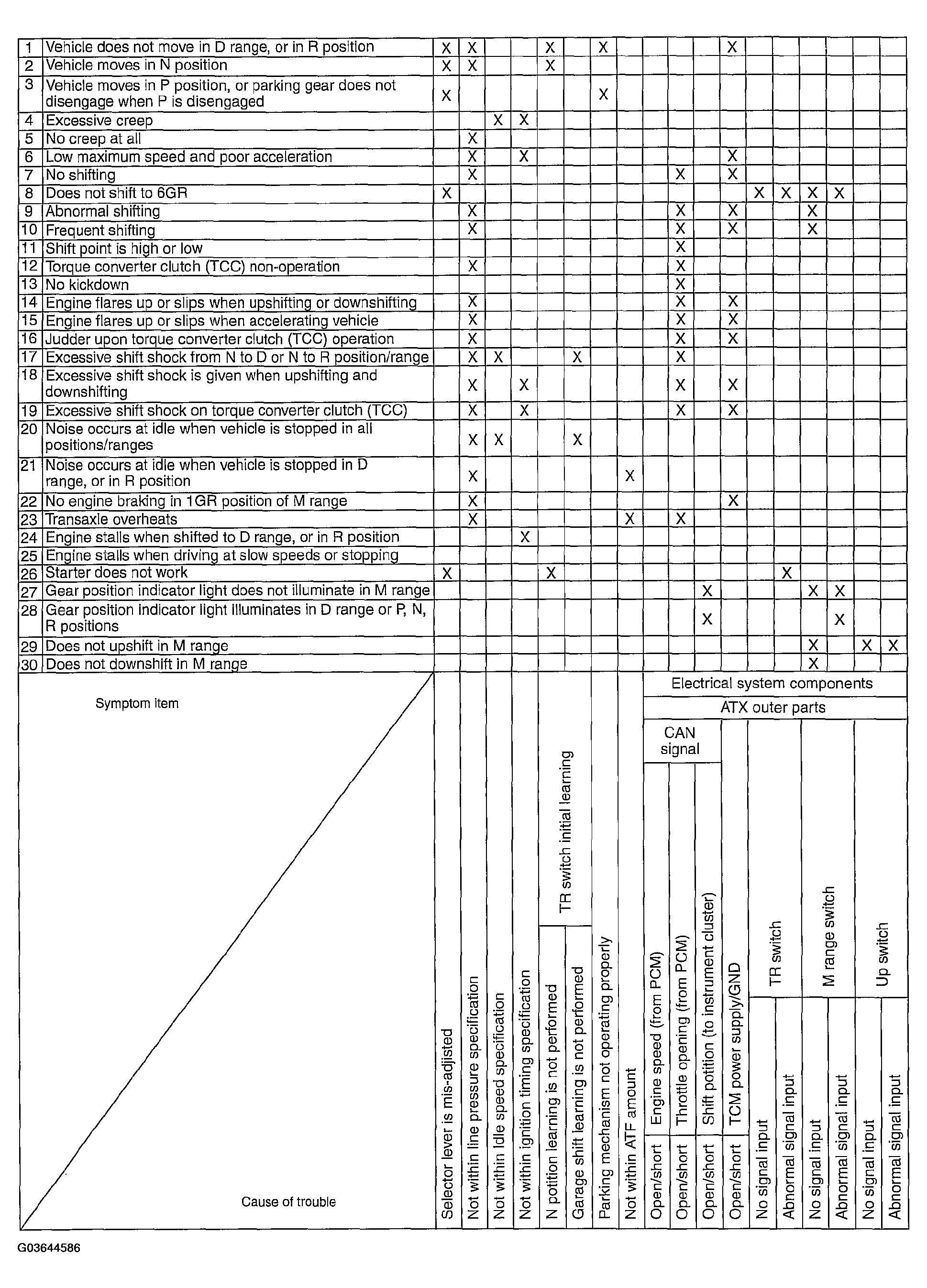

Fig 2: Quick Diagnosis Chart [AW6A-EL] (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

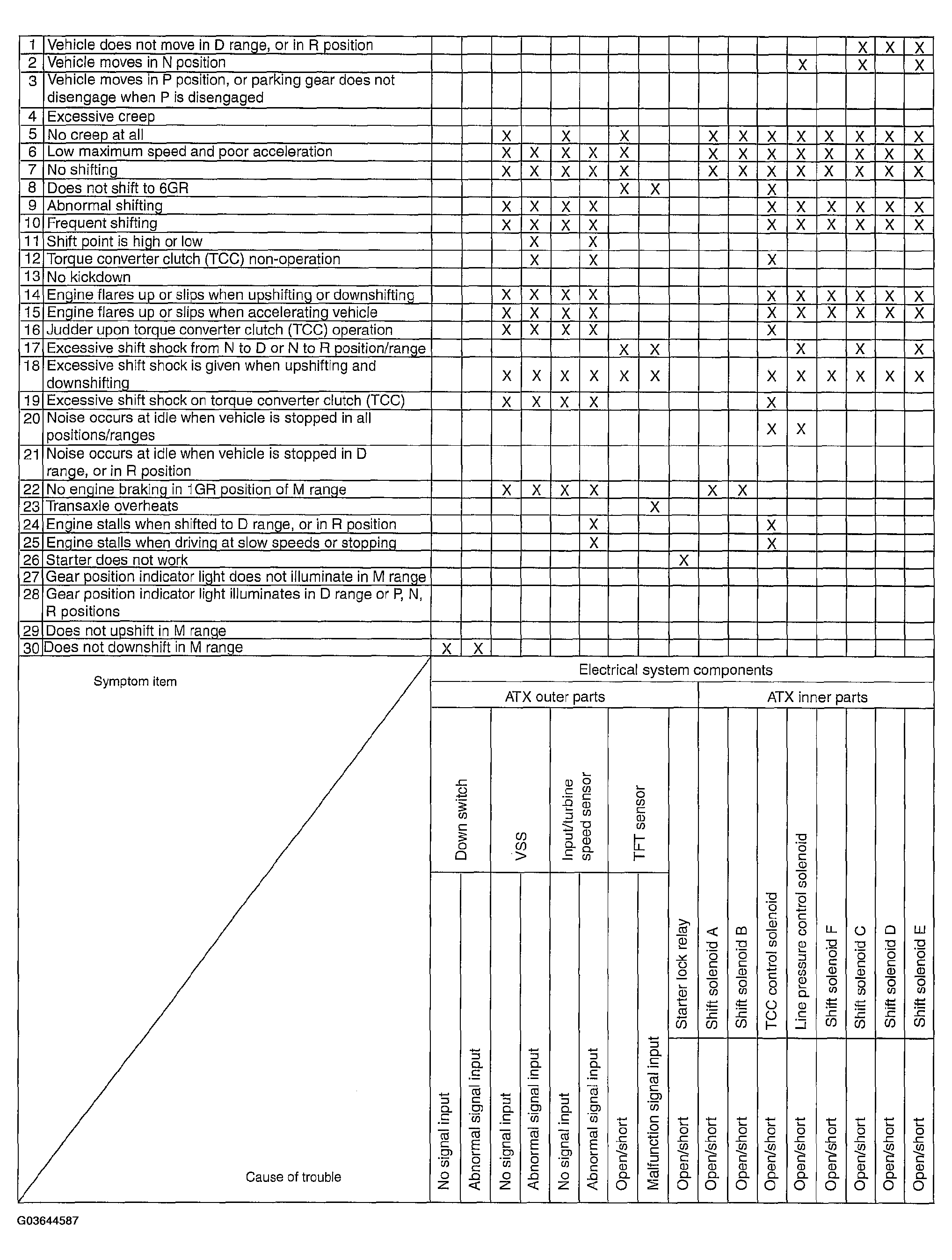

Fig 3: Quick Diagnosis Chart [AW6A-EL] (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

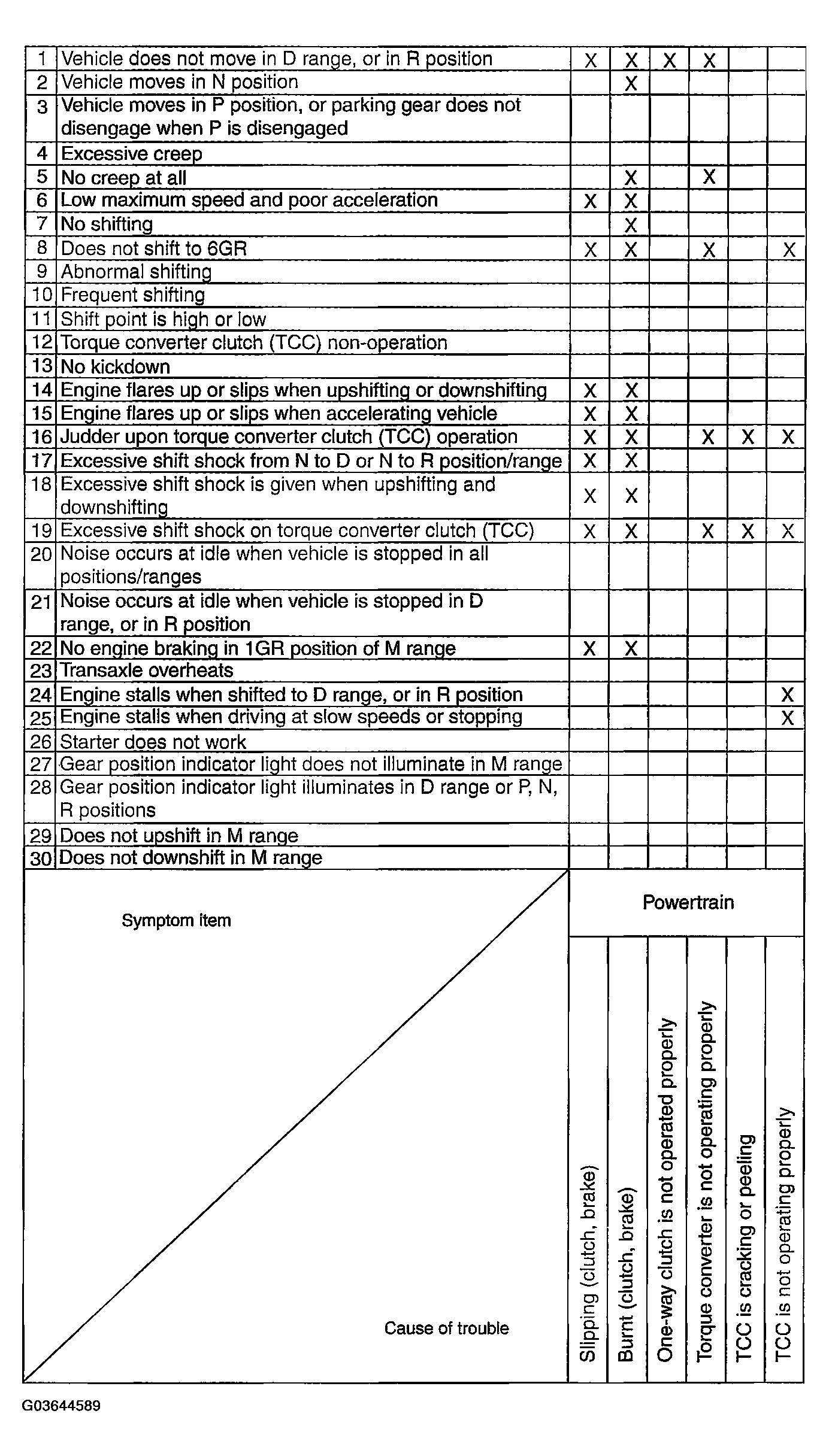

Fig 4: Quick Diagnosis Chart [AW6A-EL] (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
