DTC Reading Procedure

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
  3. Retrieve DTCs using the WDS or equivalent.

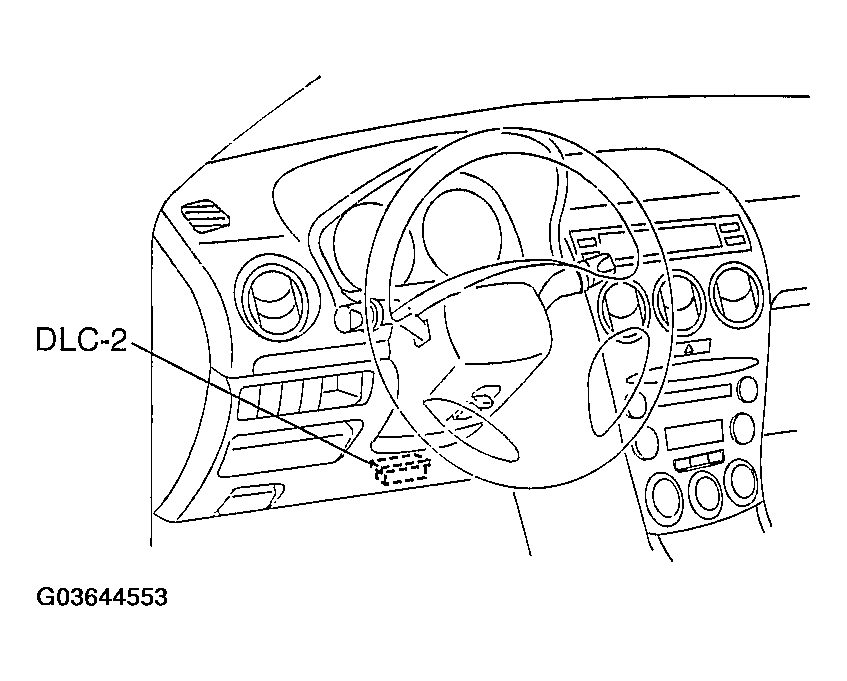

    Fig 1: Identifying DLC-2 16-Pin Connector Location
    G03644553Courtesy of MAZDA MOTORS CORP.
