Automatic Transaxle Control System Wiring Diagram

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

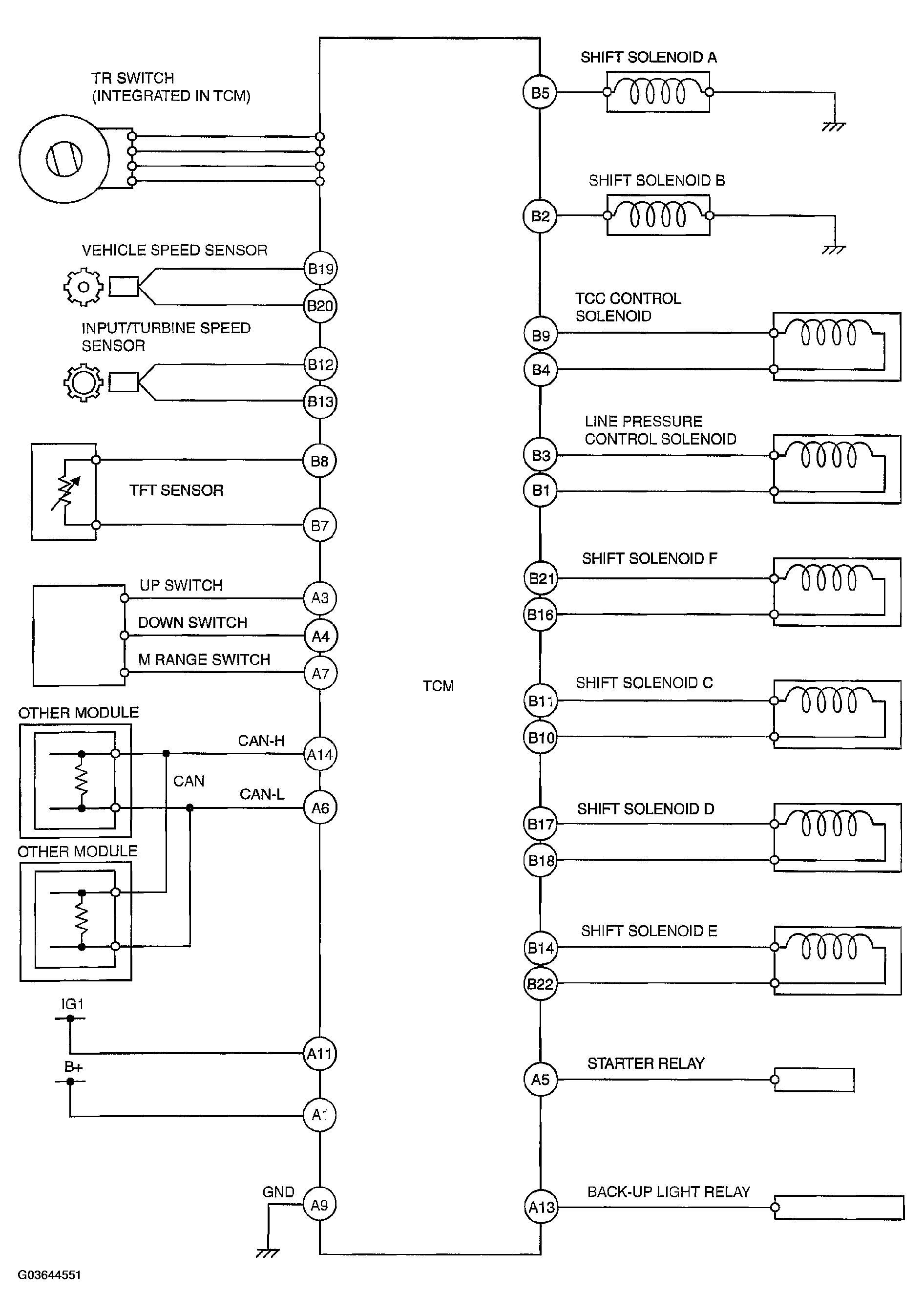

Fig 1: Wiring Diagram - Automatic Transaxle Control System
G03644551Courtesy of MAZDA MOTORS CORP.
