Removal & Installation (Protege5)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 Mazda Protege5, 2002 Mazda Protege, 2002 Mazda Millenia, 2002 Mazda MX-5 Miata, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

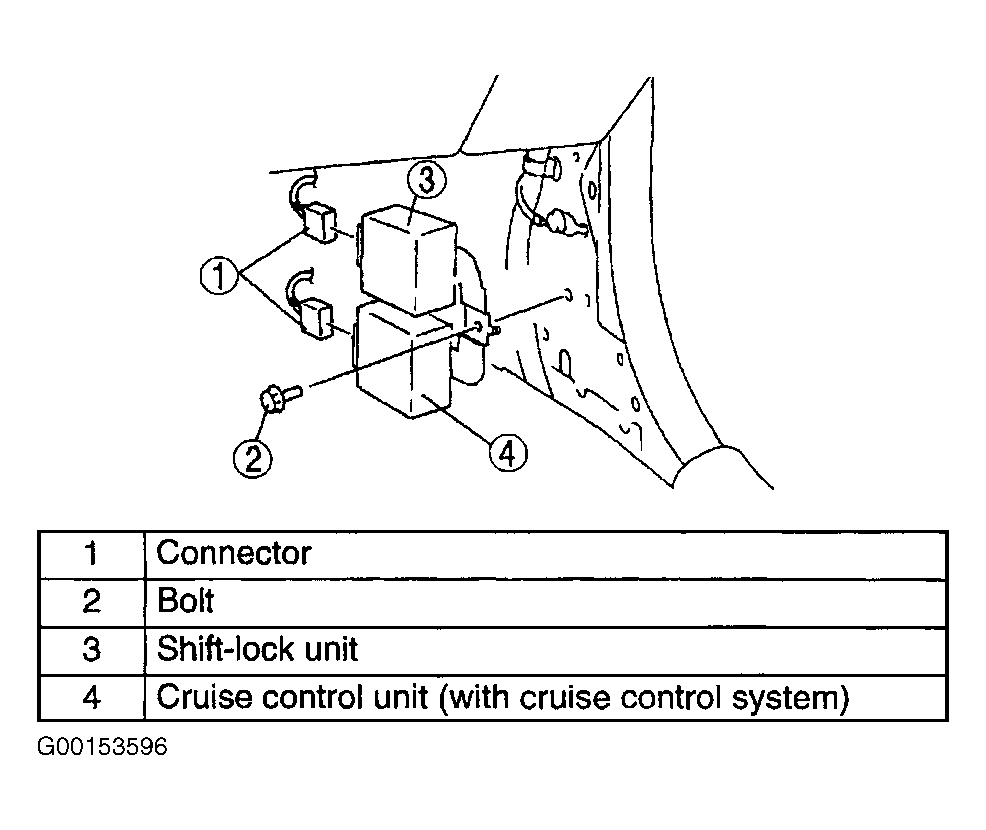

Disconnect negative battery cable. Remove passenger side kick panel. Disconnect harness connector. Unbolt and remove shift lock control unit with cruise control unit. See Fig 1 . To install, reverse removal procedure.
