Installation (Miata)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 Mazda Protege5, 2002 Mazda Protege, 2002 Mazda Millenia, 2002 Mazda MX-5 Miata, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

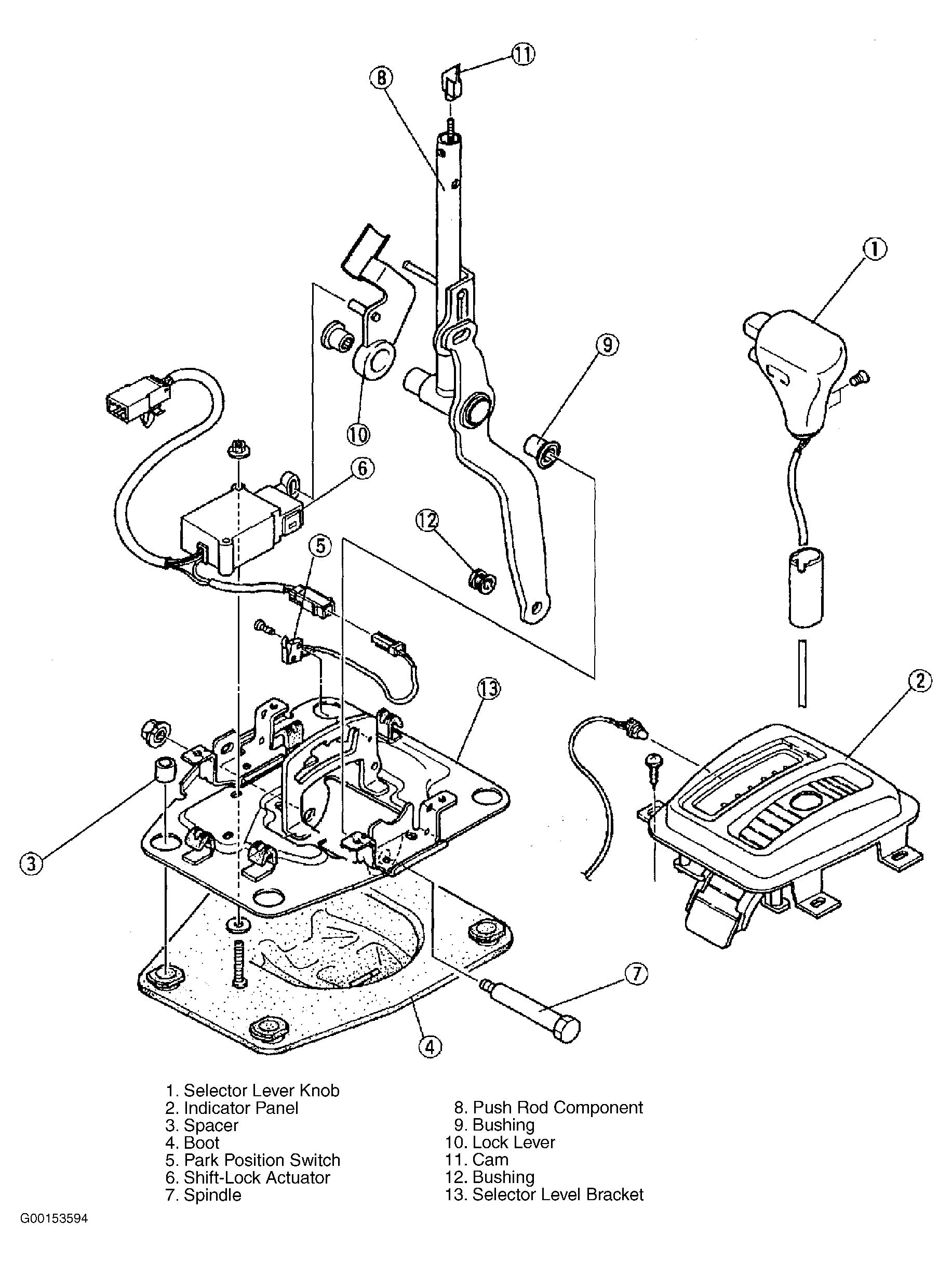

Install park position switch. Connect harness connector. Install gearshift indicator panel. Ensure gearshift handle is in "P" position. Align holes on slider with holes on panel. Tighten screws in crisscross pattern to 18-25 INCH lbs. (2.0-2.9 N.m). Install center panel and rear console. Connect negative battery cable. Check shift interlock system operation. See SHIFT INTERLOCK SYSTEM under DESCRIPTION & OPERATION.
