PID/Data Monitor and Record Procedure

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect WDS or equivalent to the vehicle DLC-2 connector.
  2. Access and monitor PIDs using the WDS or equivalent.

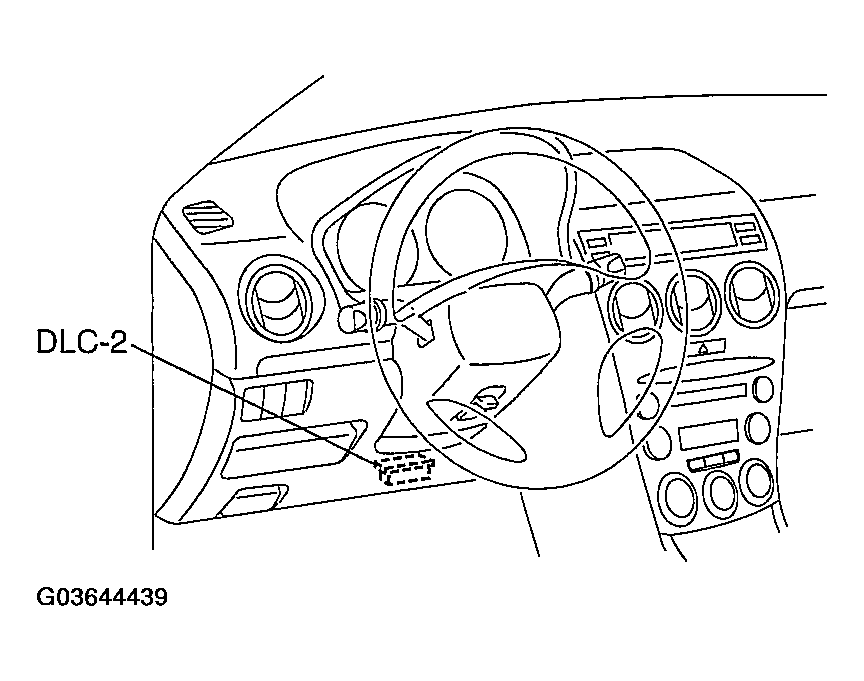

    Fig 1: Locating DLC-2 Connector
    G03644439Courtesy of MAZDA MOTORS CORP.
