Active Command Modes Procedure

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When driving, the ABS motor and each valve automatically turn ABS_POWER on, and then each command on. ABS_POWER regulates the power supply for the ABS motor and 8 valves.
  1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector.
  2. Turn the ignition key to ON (engine off) or start engine.
  3. Activate active command modes using the WDS or equivalent.

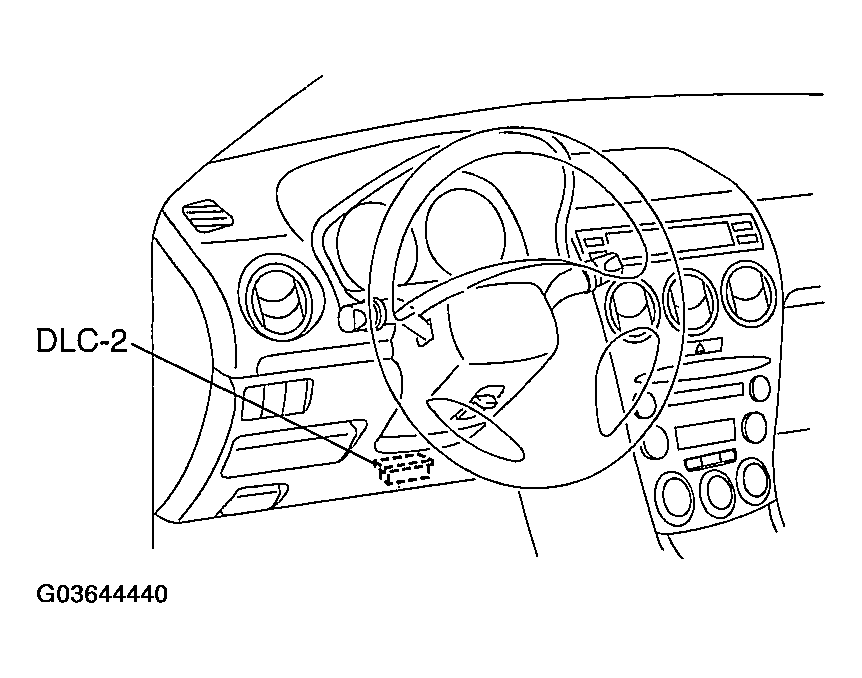

    Fig 1: Locating DLC-2 Connector
    G03644440Courtesy of MAZDA MOTORS CORP.
