Joint Shaft Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Separate the right side drive shaft from the joint shaft by tapping on a brass bar inserted between them.
    Fig 1: Separating Right Side Drive Shaft
    G03644375Courtesy of MAZDA MOTORS CORP.
  2. Separate the joint shaft bracket from cylinder block.
  3. Pull the joint shaft straight out.
    CAUTION:
    • The sharp edges of the joint shaft can slice or puncture the oil seal. Be careful when removing the joint shaft from the transaxle.
  4. Install the SST  into the transaxle to hold the side gears after the joint shaft is removed.

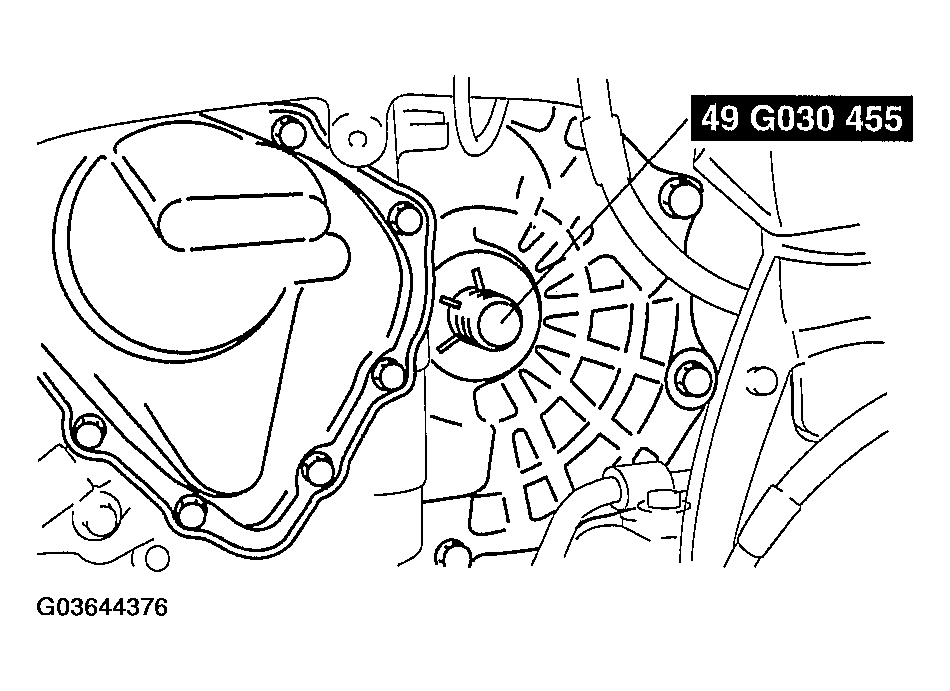

    Fig 2: Installing SST Into Transaxle To Hold Side Gears
    G03644376Courtesy of MAZDA MOTORS CORP.
