Drive Shaft Disassembly/Assembly [MTX]: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

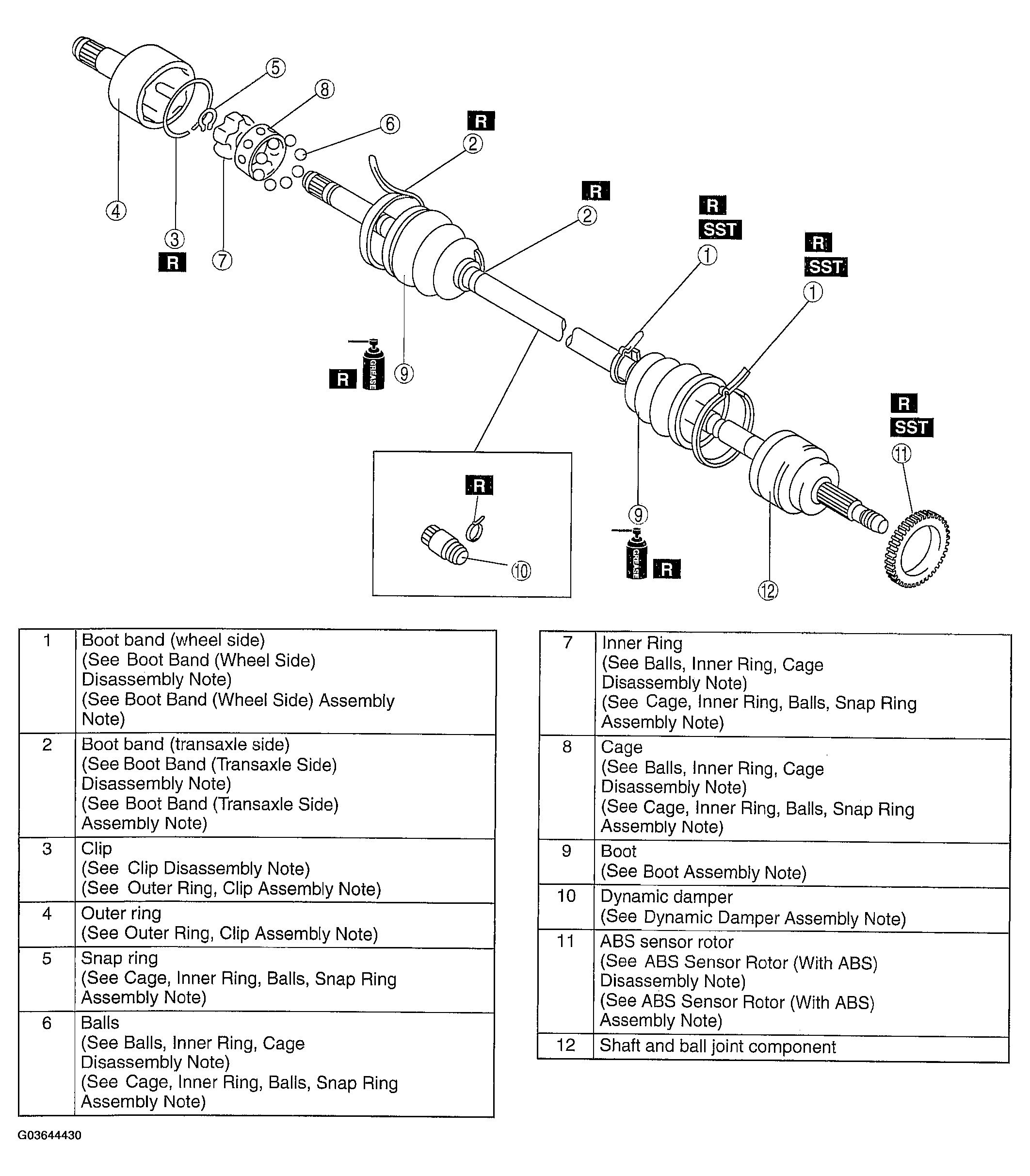

    Fig 1: Drive Shaft Disassembling Sequence
    G03644430Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
