Clip Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the drive shaft and outer ring for proper assembly.
    CAUTION:
    • Mark with paint; do not use a punch.

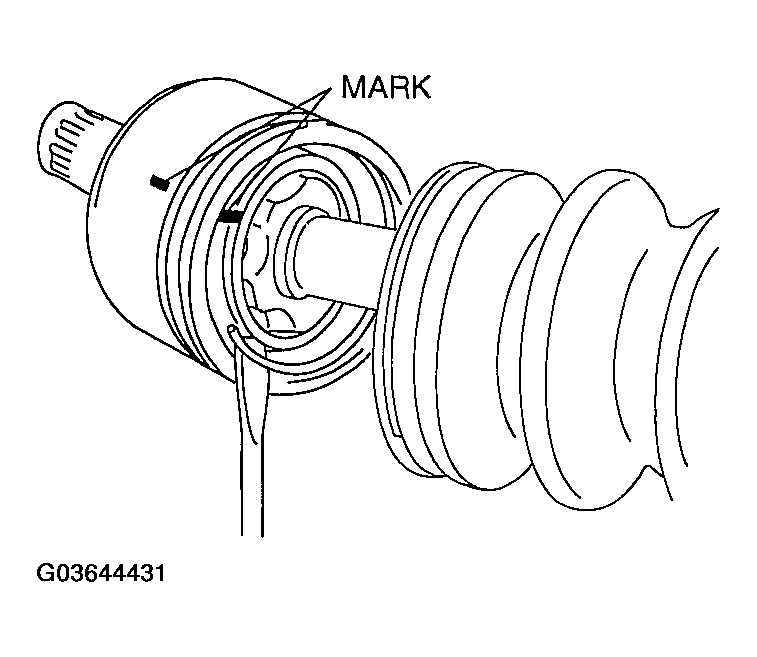

    Fig 1: Marking Drive Shaft And Outer Ring For Proper Assembly
    G03644431Courtesy of MAZDA MOTORS CORP.
  2. Remove the clip.
