Boot Band (Transaxle Side) Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the band in the direction opposite to the forward revolving direction of the drive shaft and use pliers to pull it tight.
  2. Lock the end of the band by bending the locking clips.
    CAUTION:
    • Install the band into the groove securely.

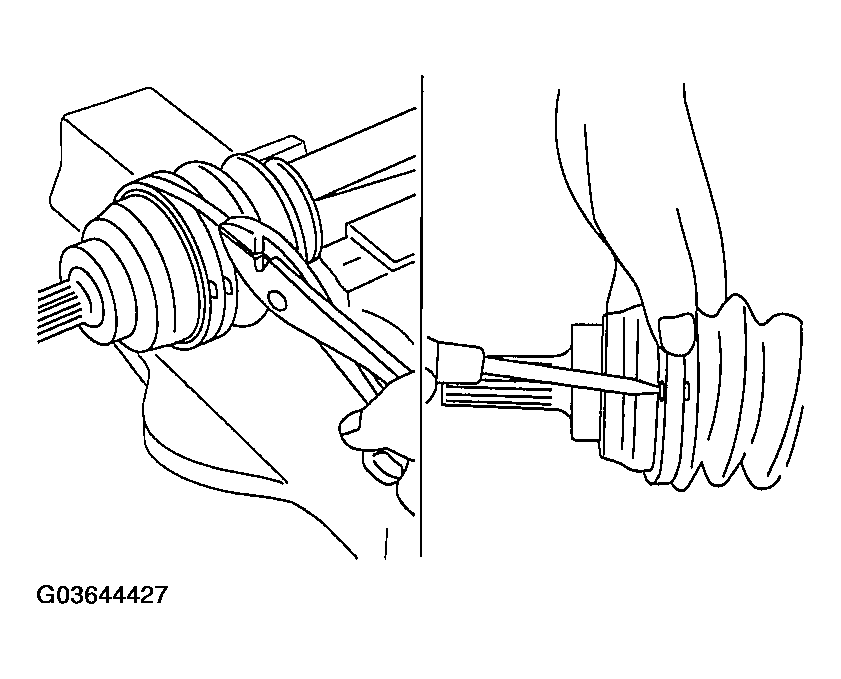

    Fig 1: Locking End Of Band By Bending Locking Clips
    G03644427Courtesy of MAZDA MOTORS CORP.
