Bolt (Front Upper Arm) Removal Note
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

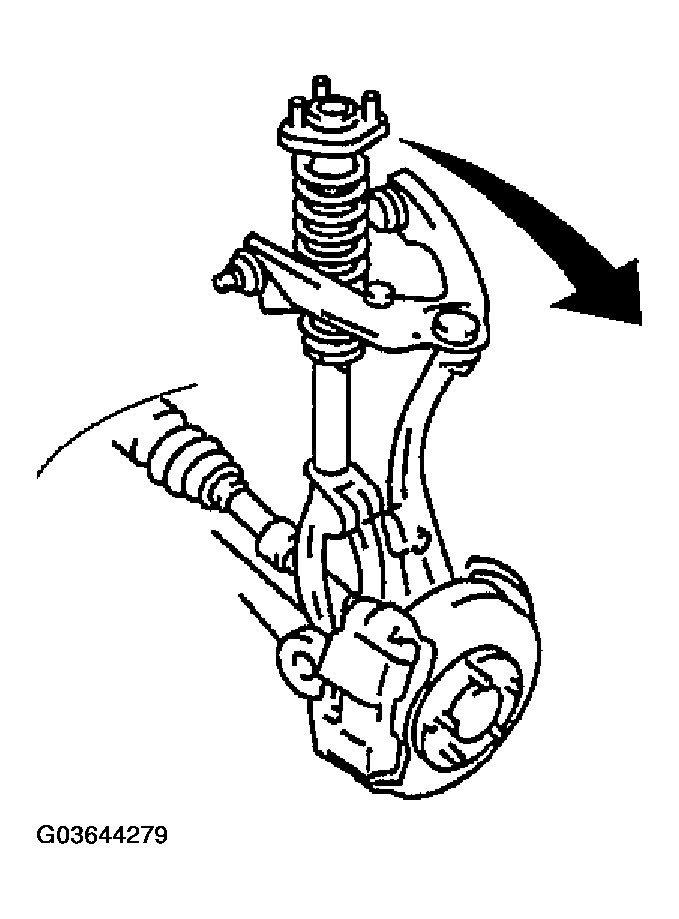

- Remove the nuts (3 locations) from the upper part of the front shock absorber.
- Pull the front shock absorber and coil spring out of the way, towards the outer side of the vehicle.
Courtesy of MAZDA MOTORS CORP.
- Remove the bolts.
