Front Lower Arm (Rear) Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the crossmember component with a jack.

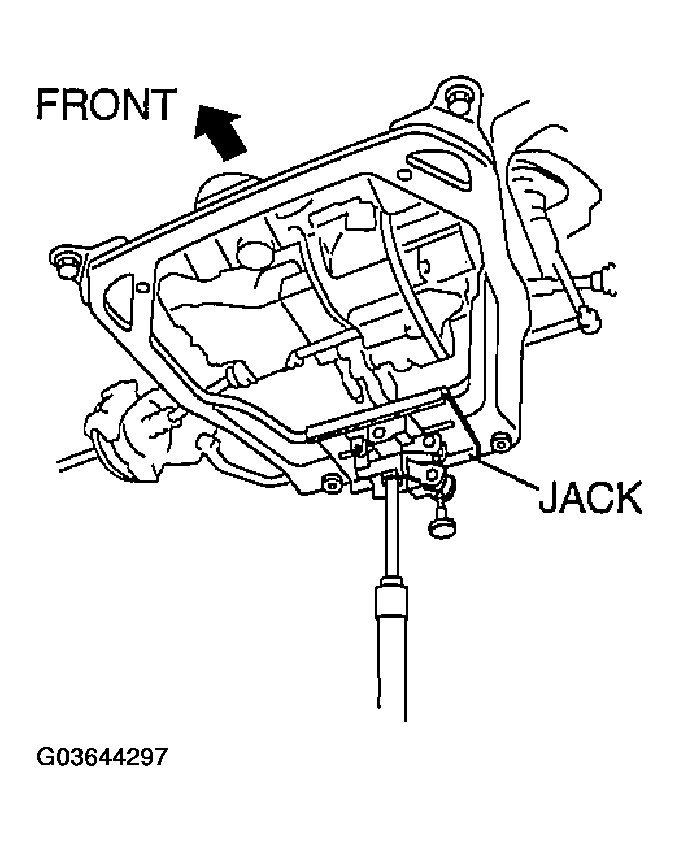

    Fig 1: Supporting Crossmember Component With Jack
    G03644297Courtesy of MAZDA MOTORS CORP.
  2. Loosen the crossmember component installation bolts (front side). (Do not remove the bolts completely.)
  3. Remove the crossmember component installation bolts (rear side).
  4. Remove the front lower arm (rear).
