California emission regulation applicable ATX model

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

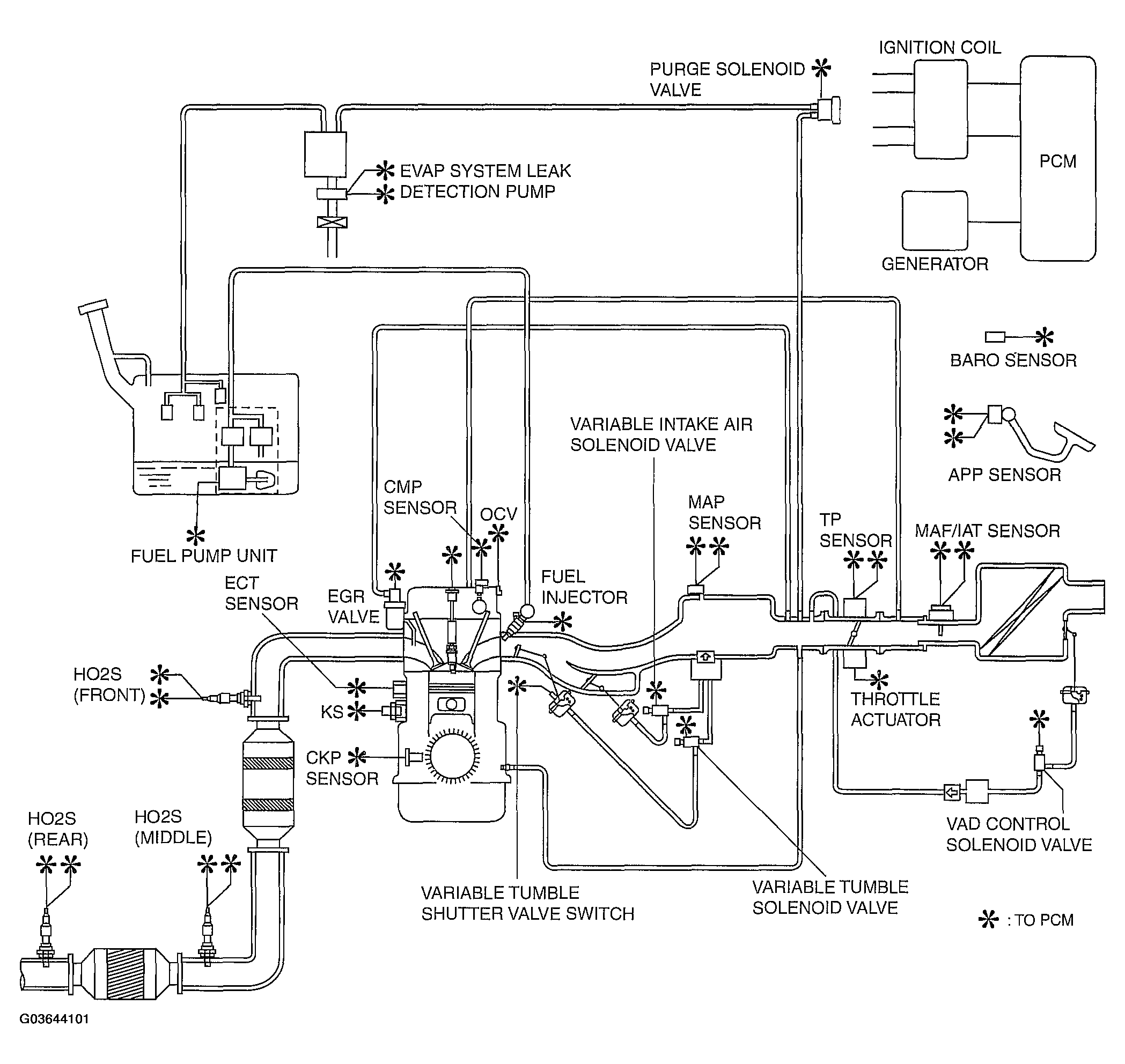

Fig 1: Control System Diagram [L3] (California Emission Regulation Applicable ATX Model)
G03644101Courtesy of MAZDA MOTORS CORP.
