Clutch & Band Application

WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

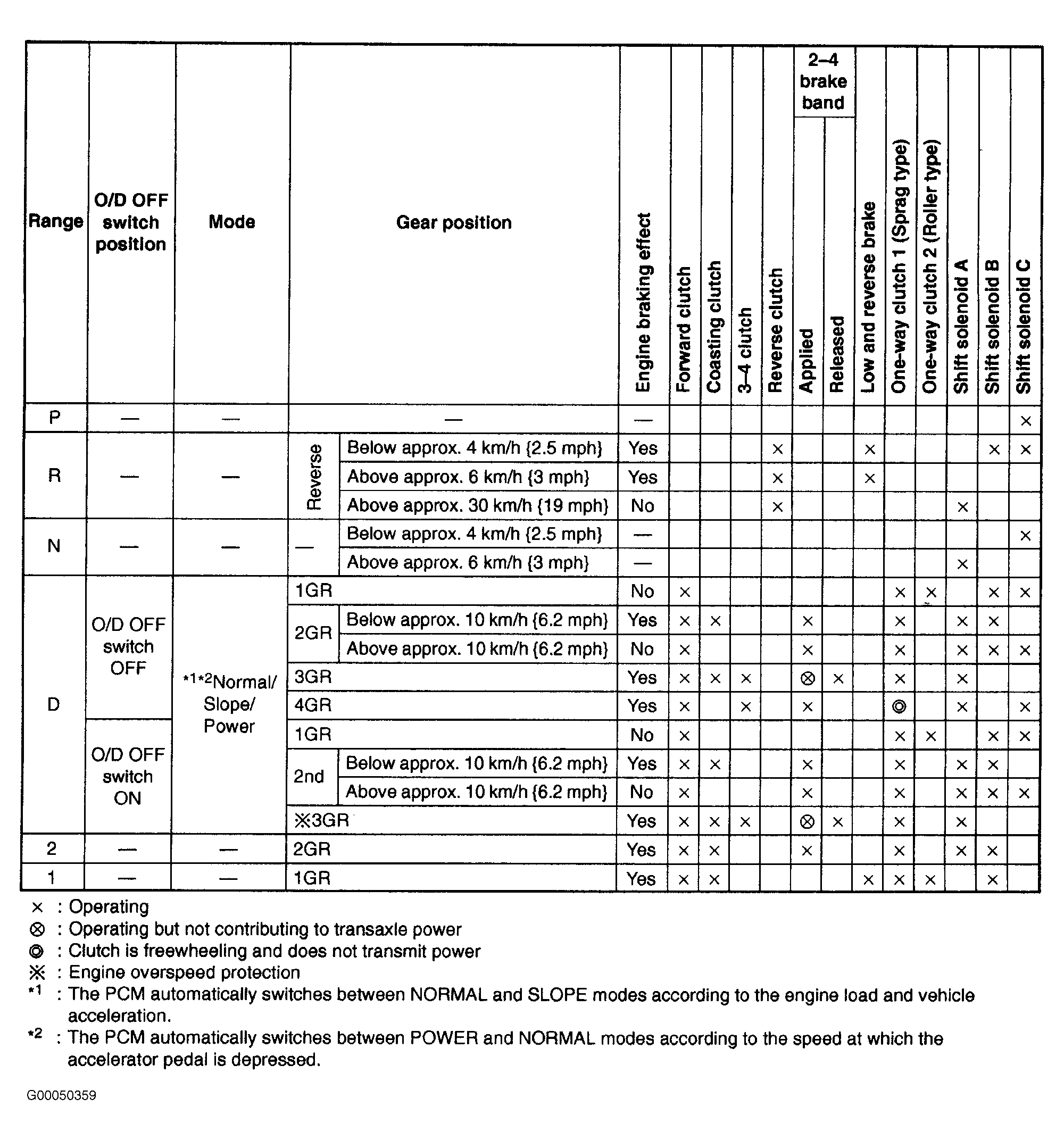

Fig 1: Clutch, Band & Solenoid Application Table

Courtesy of MAZDA MOTORS CORP.
