Shift Speed Specifications

WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For shift speed specifications, refer to appropriate illustration. See Fig 1-Fig 4 .

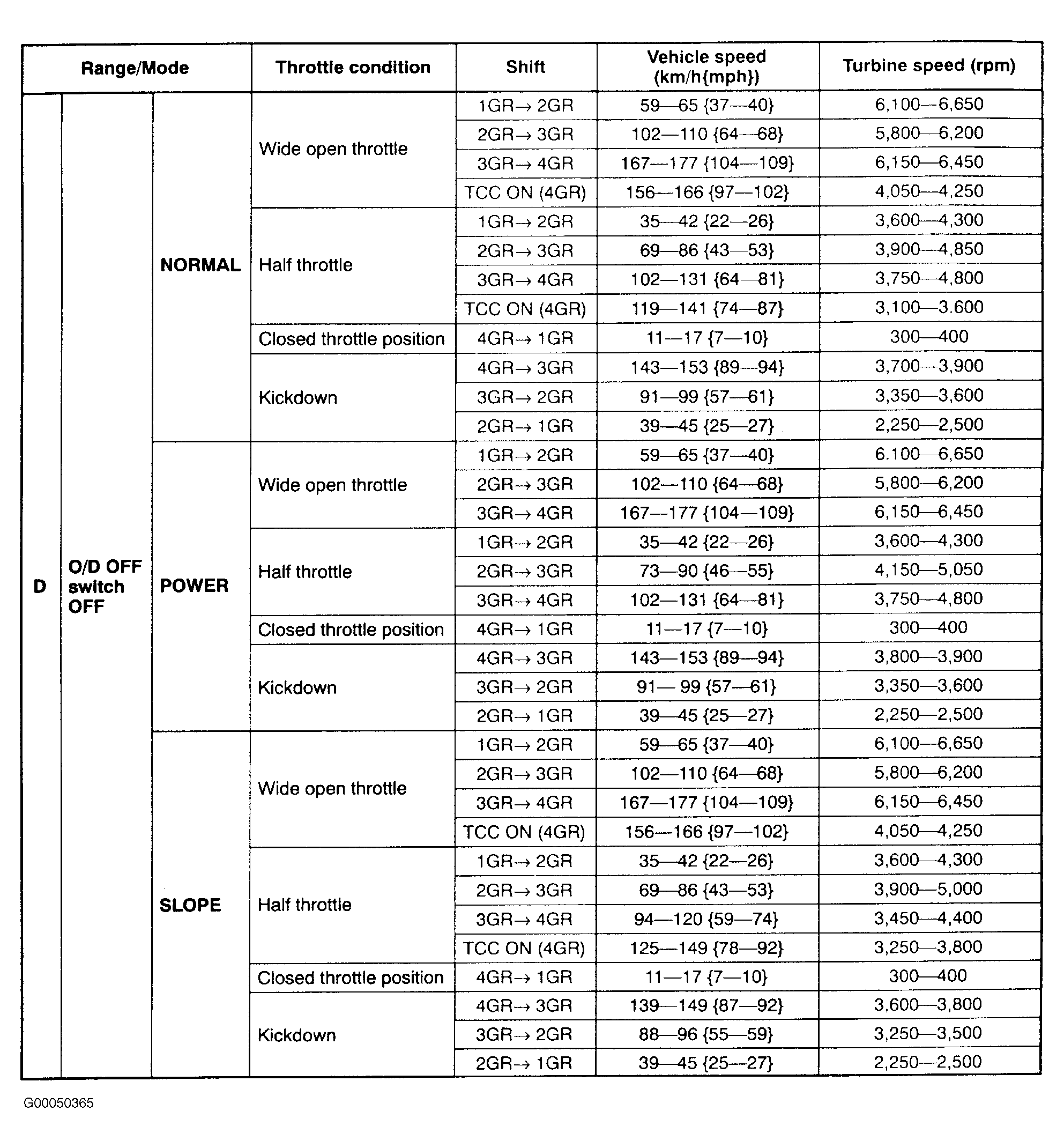

Fig 1: Shift Speed Specifications ("D" Ranges - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

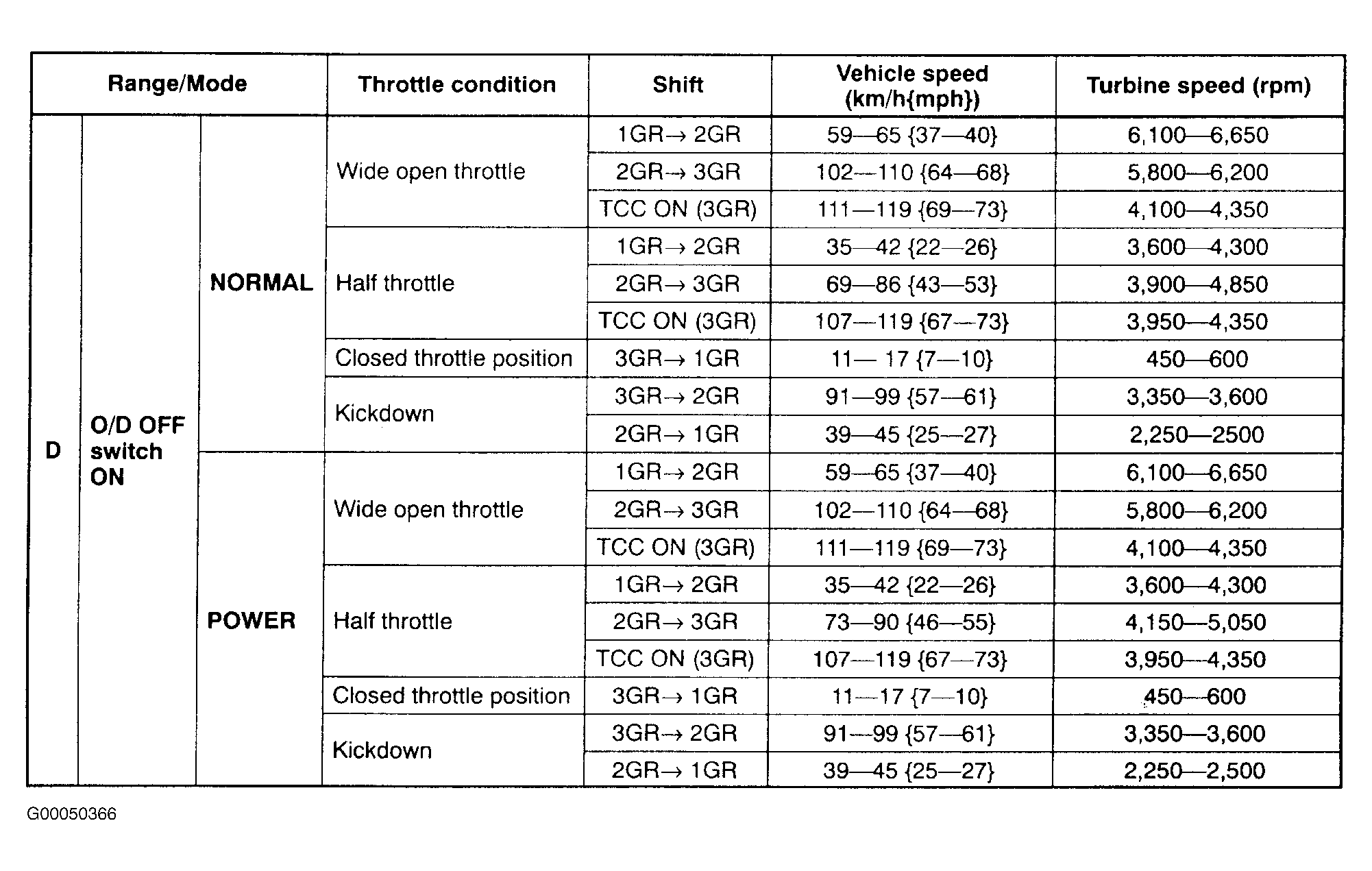

Fig 2: Shift Speed Specifications ("D" Ranges - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

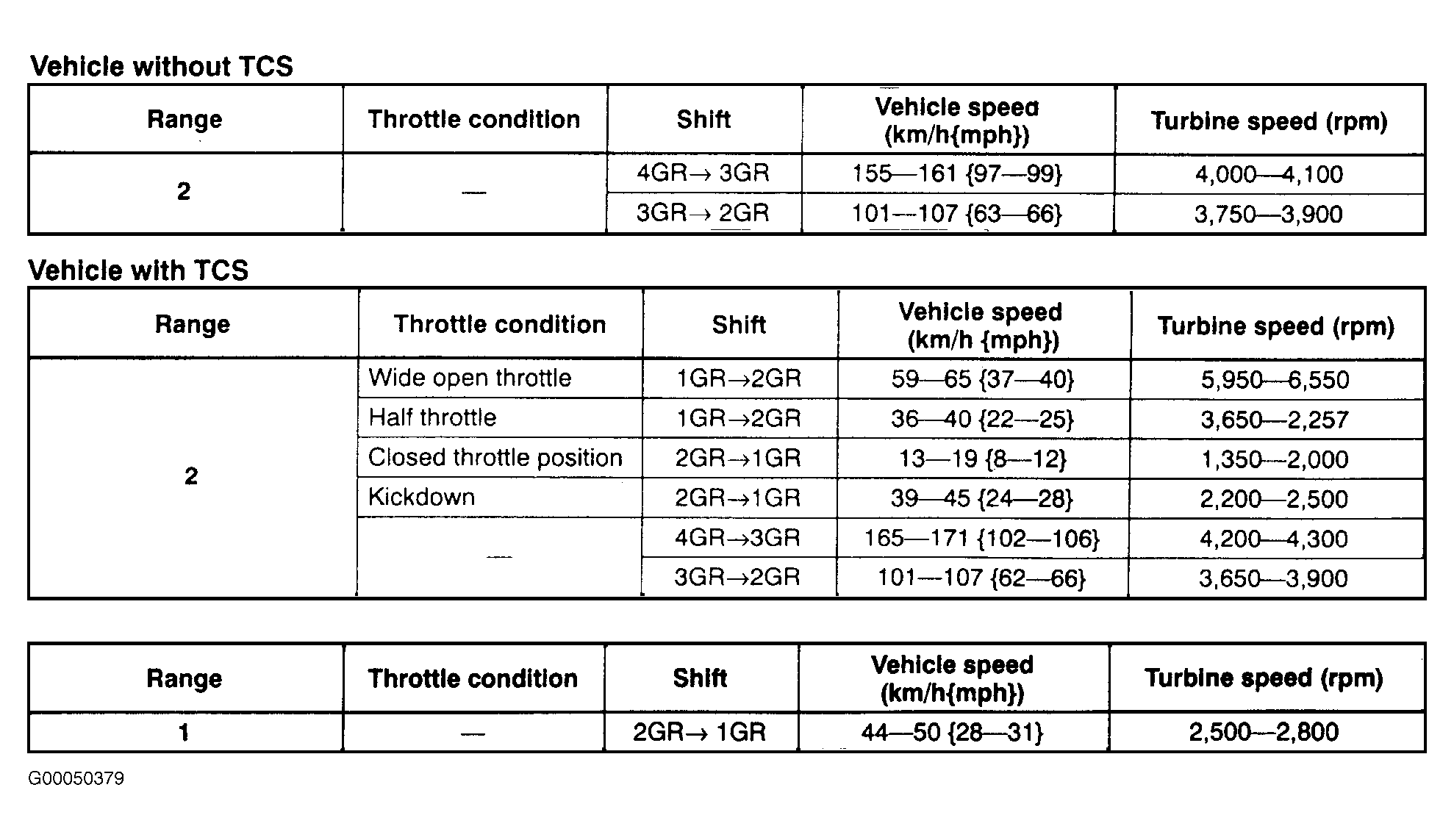

Fig 3: Shift Speed Specifications ("2" & "L" Ranges)

Courtesy of MAZDA MOTORS CORP.

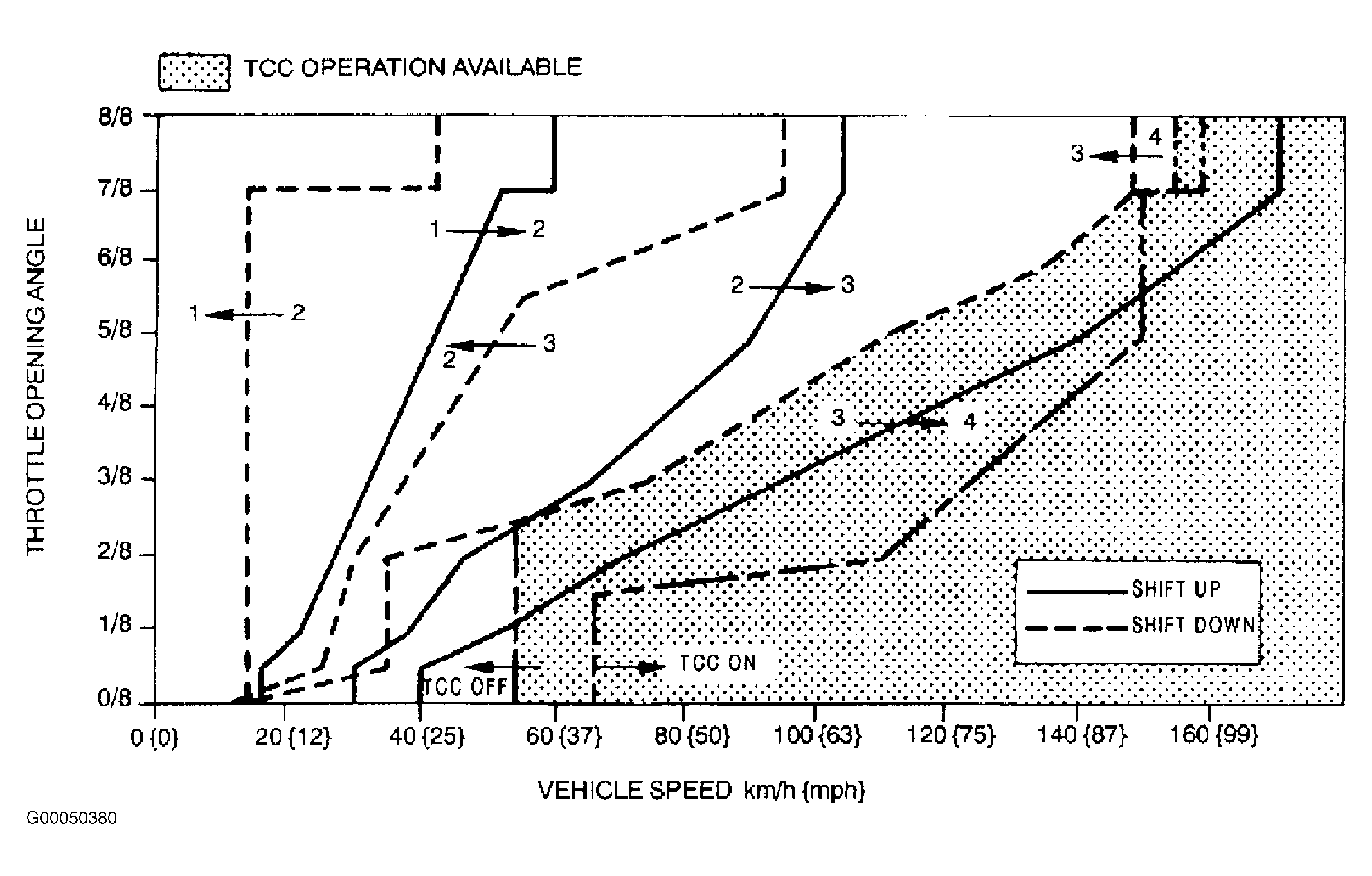

Fig 4: TCC Operation Pattern

Courtesy of MAZDA MOTORS CORP.
