Component Locations
WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Description |
Location |
| Engine Coolant Temperature Sensor |
Beside Coolant Filler Cap On Engine |
| Input/Turbine Speed Sensor |
On Top End Of Transaxle |
| Powertrain Control Module |
|

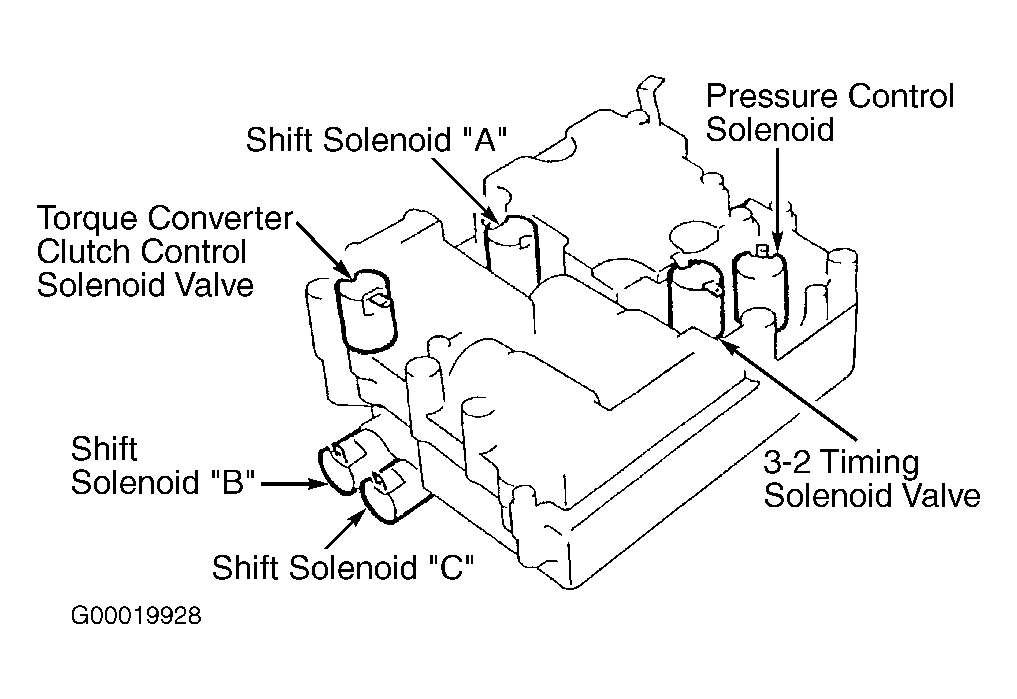

| Pressure Control Solenoid |
|
| Shift Solenoids "A", "B" & "C" |
|
| Torque Converter Clutch Control Solenoid |
|
| 3-2 Timing Solenoid |
|
| Vehicle Speed Sensor |
Mounted On Transaxle, Near Differential. |
Courtesy of MAZDA MOTORS CORP.
