Fuel Tank Side: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Raise the rear of the vehicle and support it with safety stands.
Remove in the order indicated in the table.

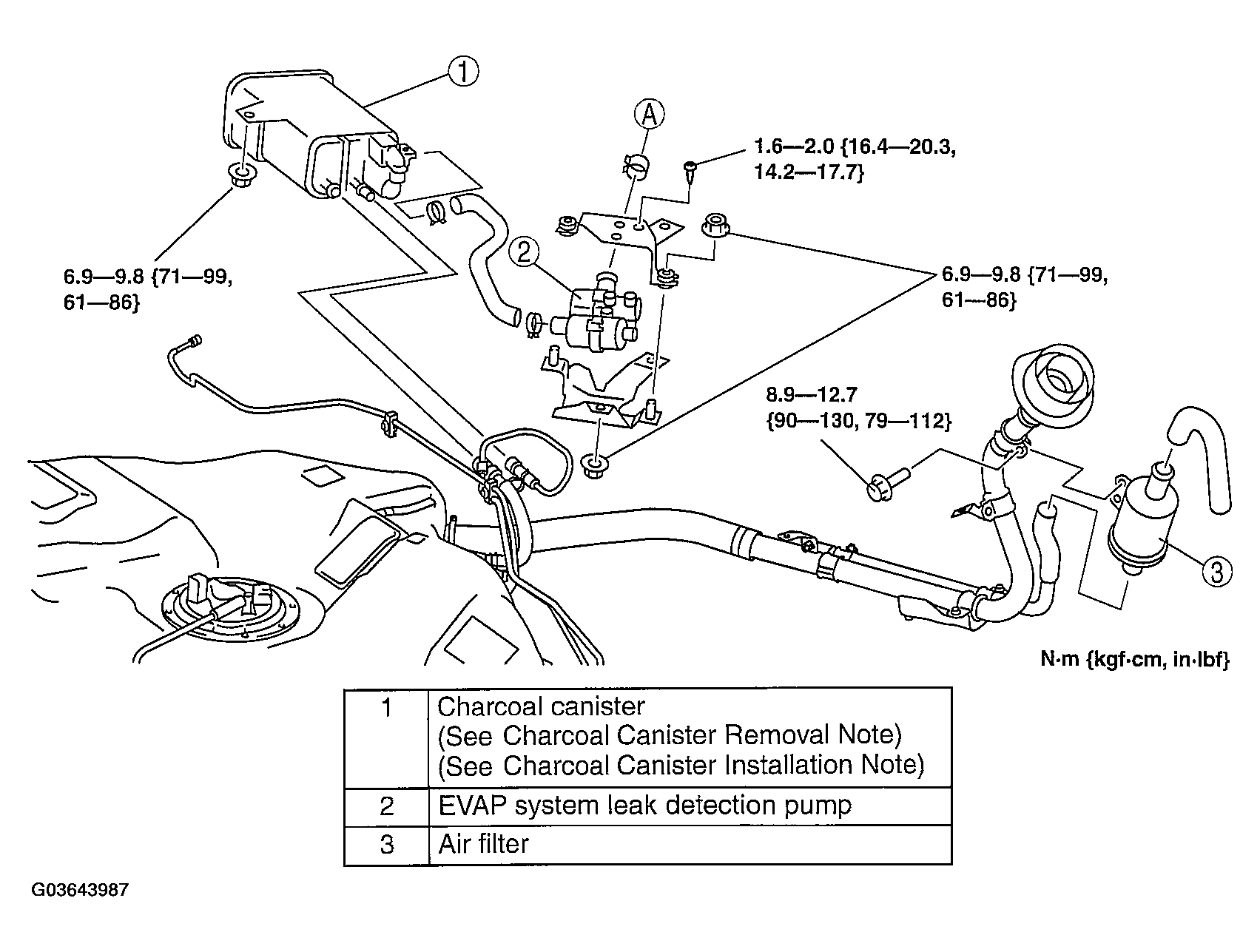

Fig 1: Exploded View Of Fuel Tank Side (California Emission Regulation Applicable ATX Model) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.

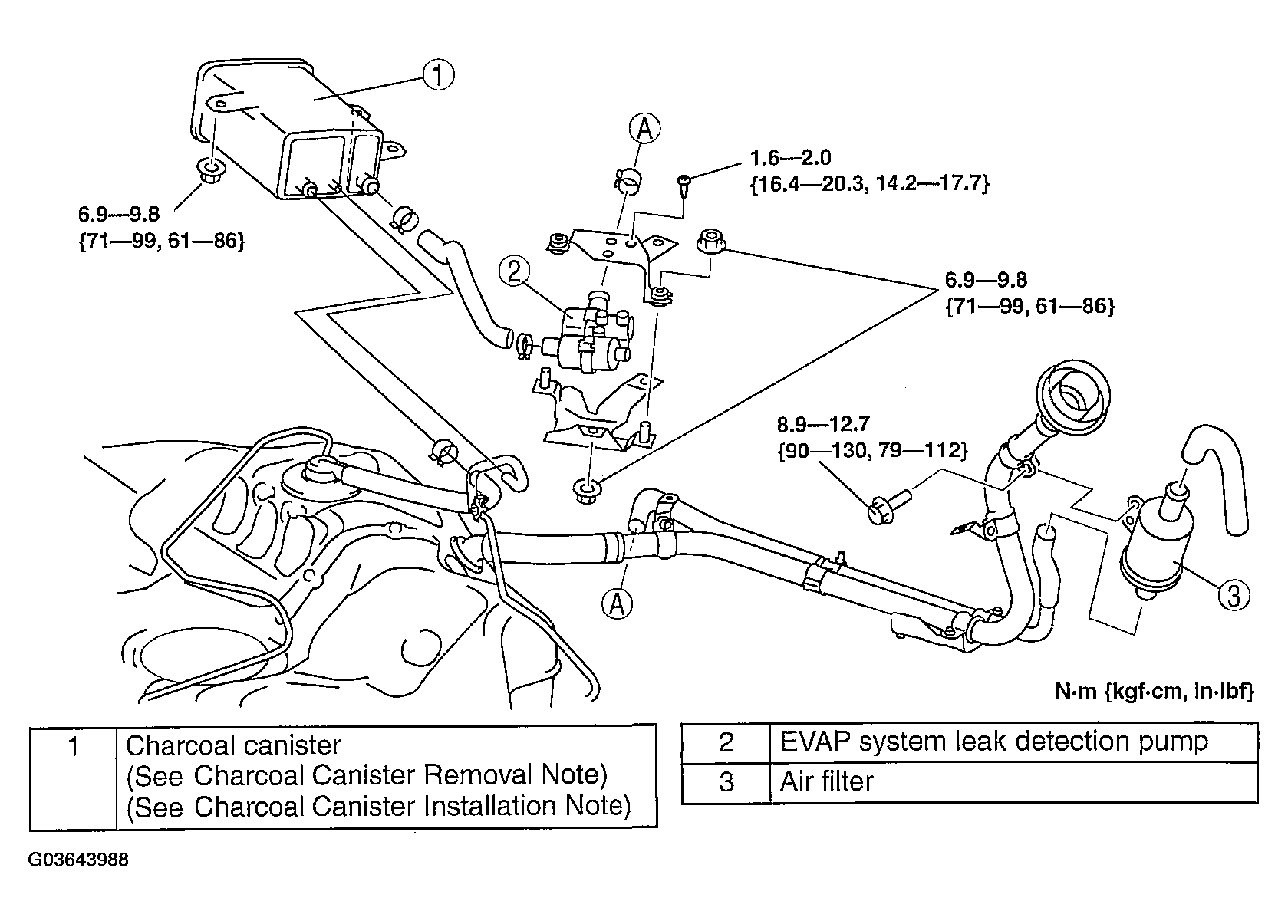

Fig 2: Exploded View Of Fuel Tank Side (Except For California Emission Regulation Applicable ATX Model) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
