Engine Room Side: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

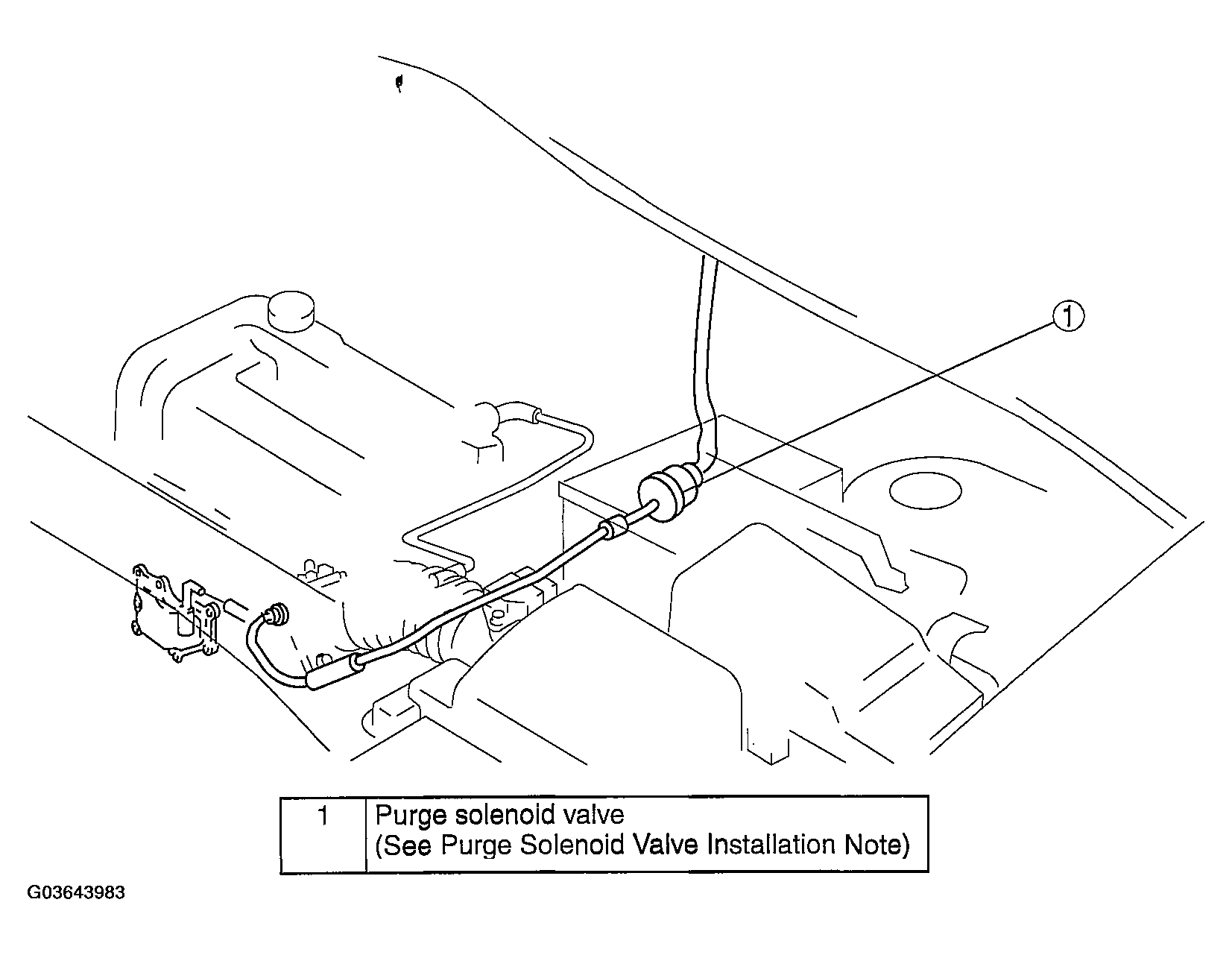

Fig 1: Identifying Evaporative Emission (EVAP) Control System Component (L3 Engine Models)
Courtesy of MAZDA MOTORS CORP.

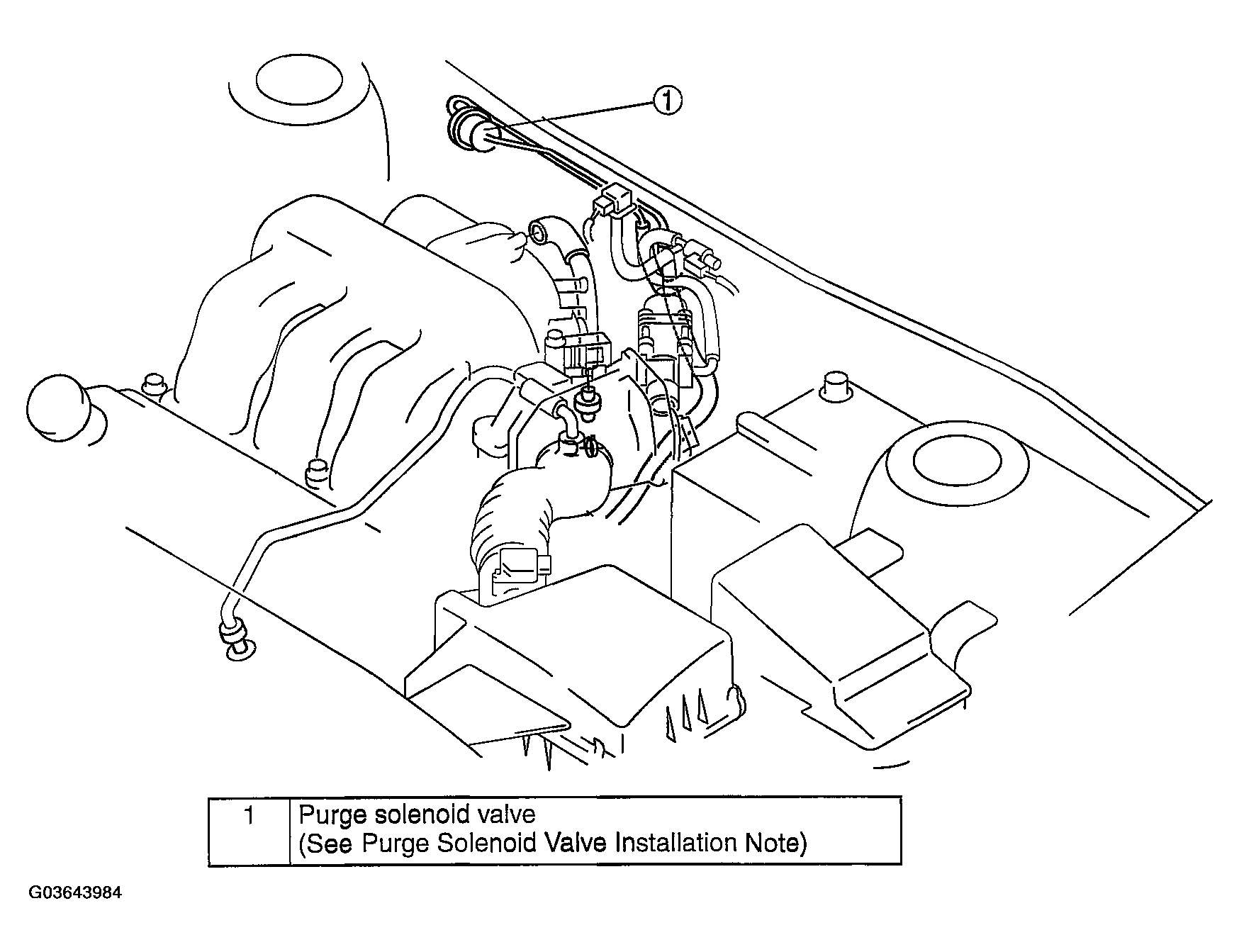

Fig 2: Identifying Evaporative Emission (EVAP) Control System Component (AJ Engine Models)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
