EGR Valve Removal/Installation [L3]: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the EGR valve connector.
Remove in the order indicated in the table.
Install in the reverse order of removal.

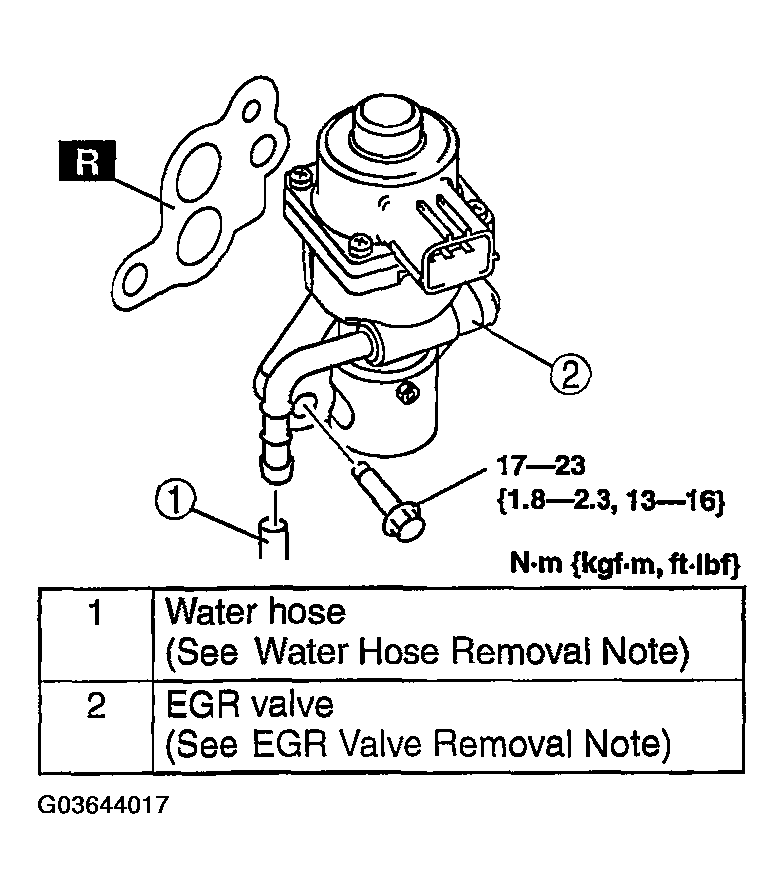

Fig 1: Exploded View Of EGR Valve (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
