Dynamic Chamber Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the dynamic chamber installation bolts in the order indicated.
Tightening torque

8-12 N.m {82-122 kgf.cm, 72-106 in-lbf}

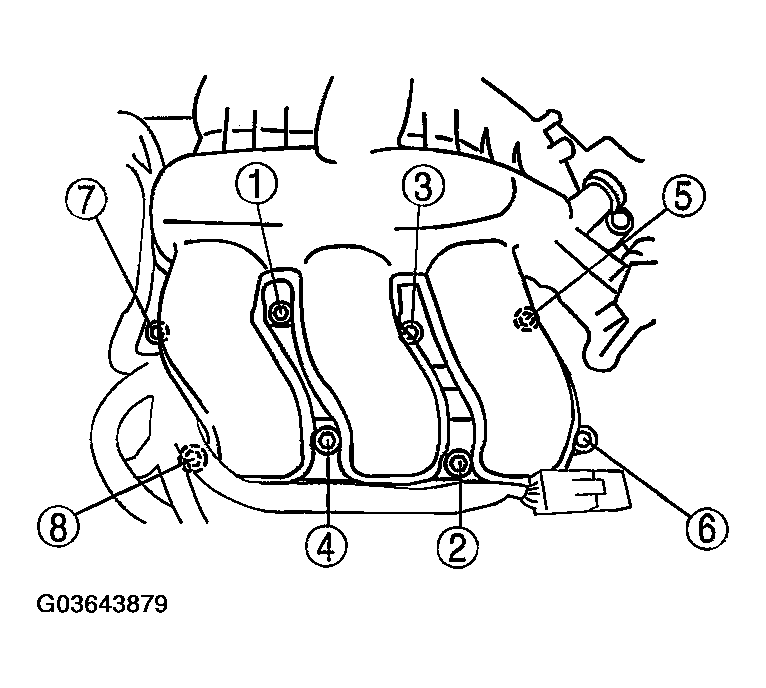

Fig 1: Dynamic Chamber Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
