Section 341 (Engine Mechanical [Intake-Air System L3))
>>
Variable Air Duct (VAD) Control Solenoid Valve Inspection
>>
Circuit Open/Short Inspection
>>
California emission regulation applicable ATX model
California emission regulation applicable ATX model
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

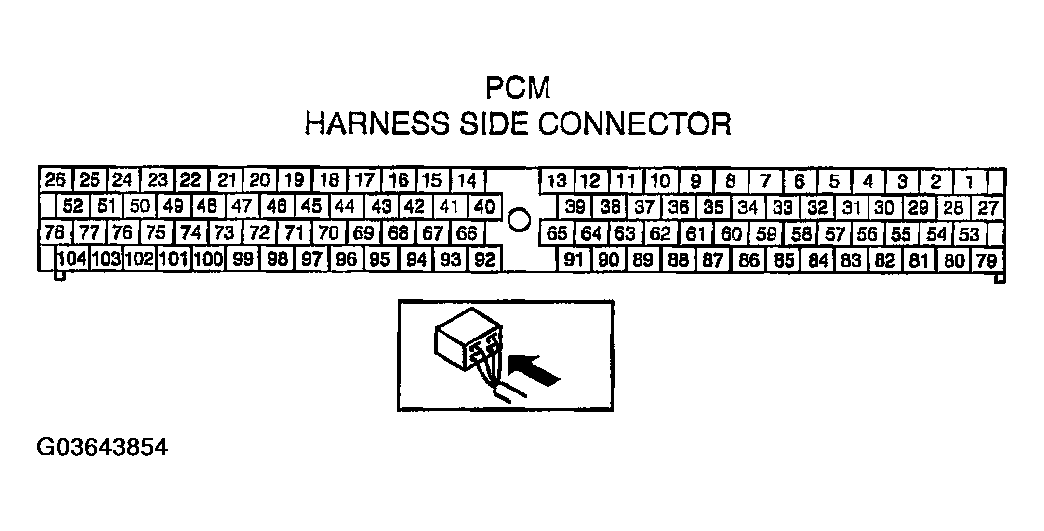

Fig 1: Identifying California Emission Regulation Applicable ATX Model Connector Terminals
Courtesy of MAZDA MOTORS CORP.
