Vacuum Hose Routing Diagram

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

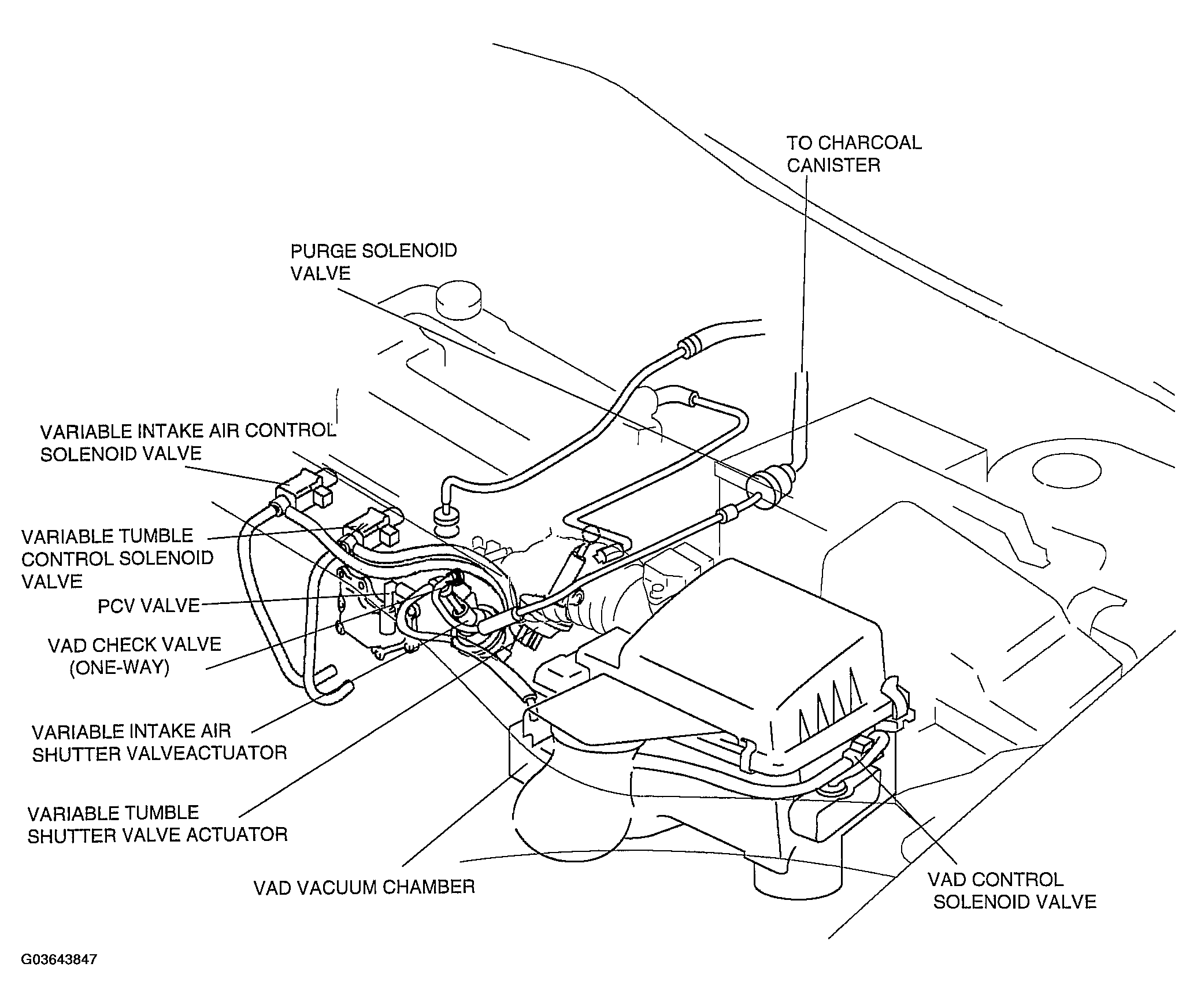

Fig 1: Vacuum Hose Routing Diagram (L3)
G03643847Courtesy of MAZDA MOTORS CORP.
