Resistance Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the throttle body connector.
  3. Measure the resistance between the throttle actuator terminals using an ohmmeter.
    • If not as specified, replace the throttle body. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
    • If as specified, carry out the "Circuit Open/Short Inspection".

      Specification

      AMBIENT TEMPERATURE RESISTANCE SPECIFICATION

      Ambient temperature (°C {°F}) Resistance (ohm)
      Approx. 20 {68} 0.3-100

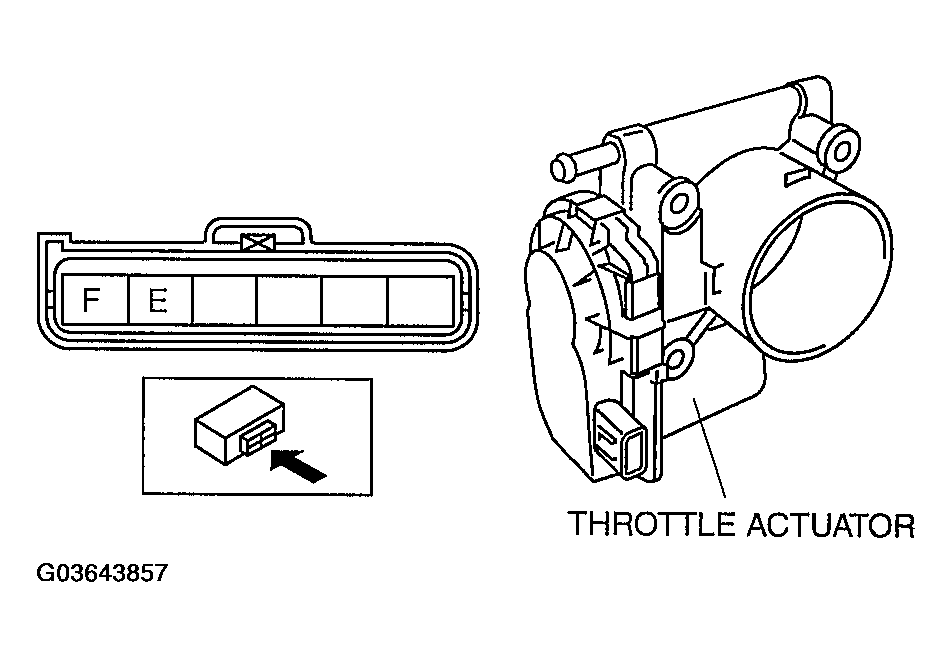

      Fig 1: Identifying Throttle Actuator Terminals
      G03643857Courtesy of MAZDA MOTORS CORP.
