Intake Air System Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • A hot engine and intake-air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake-air system.
  • Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
  • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure". (See BEFORE REPAIR PROCEDURE .)
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

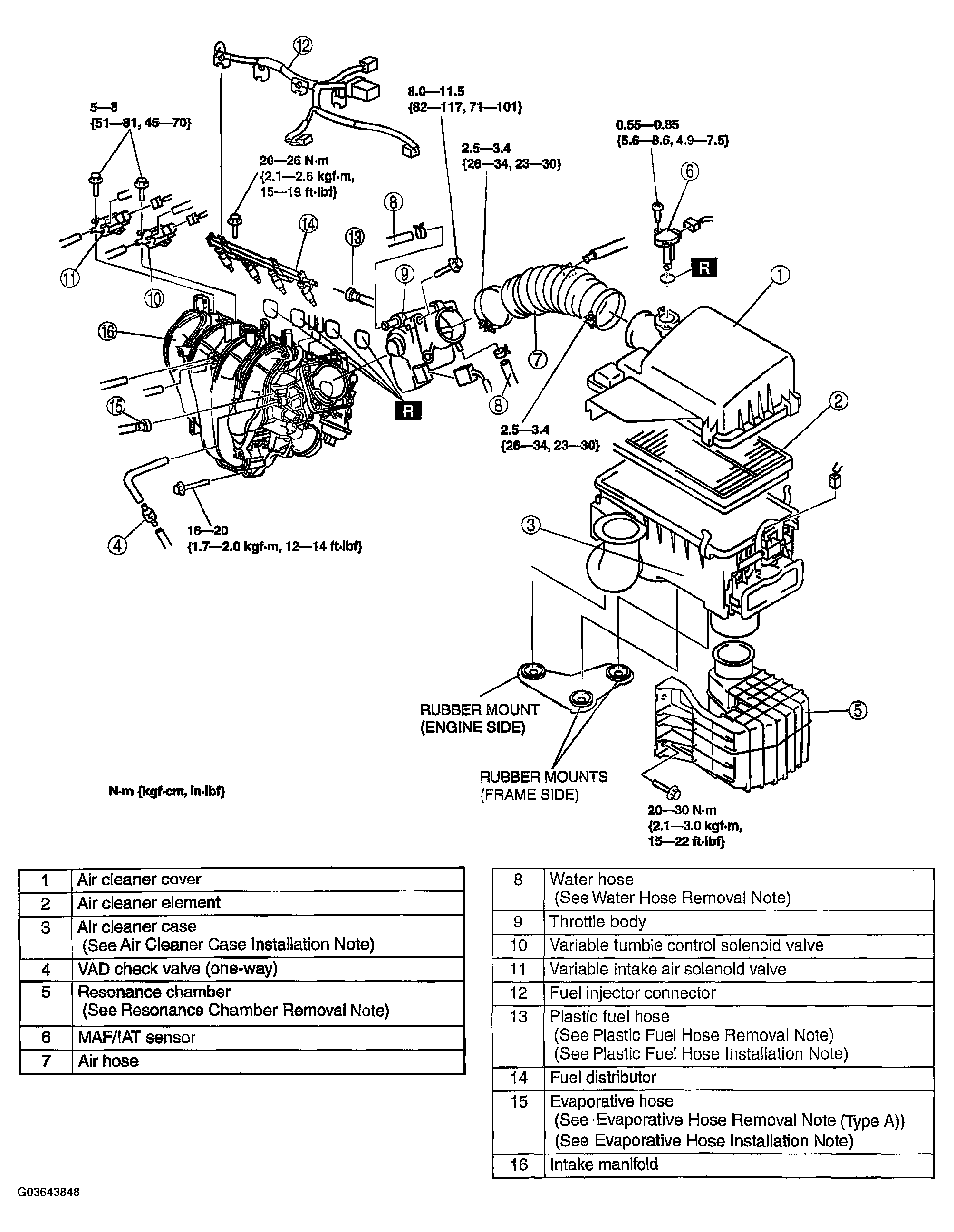

    Fig 1: Exploded View Of Intake Air System (Torque Specs)
    G03643848Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Complete the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE .)
