Intake Air System Location Index

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

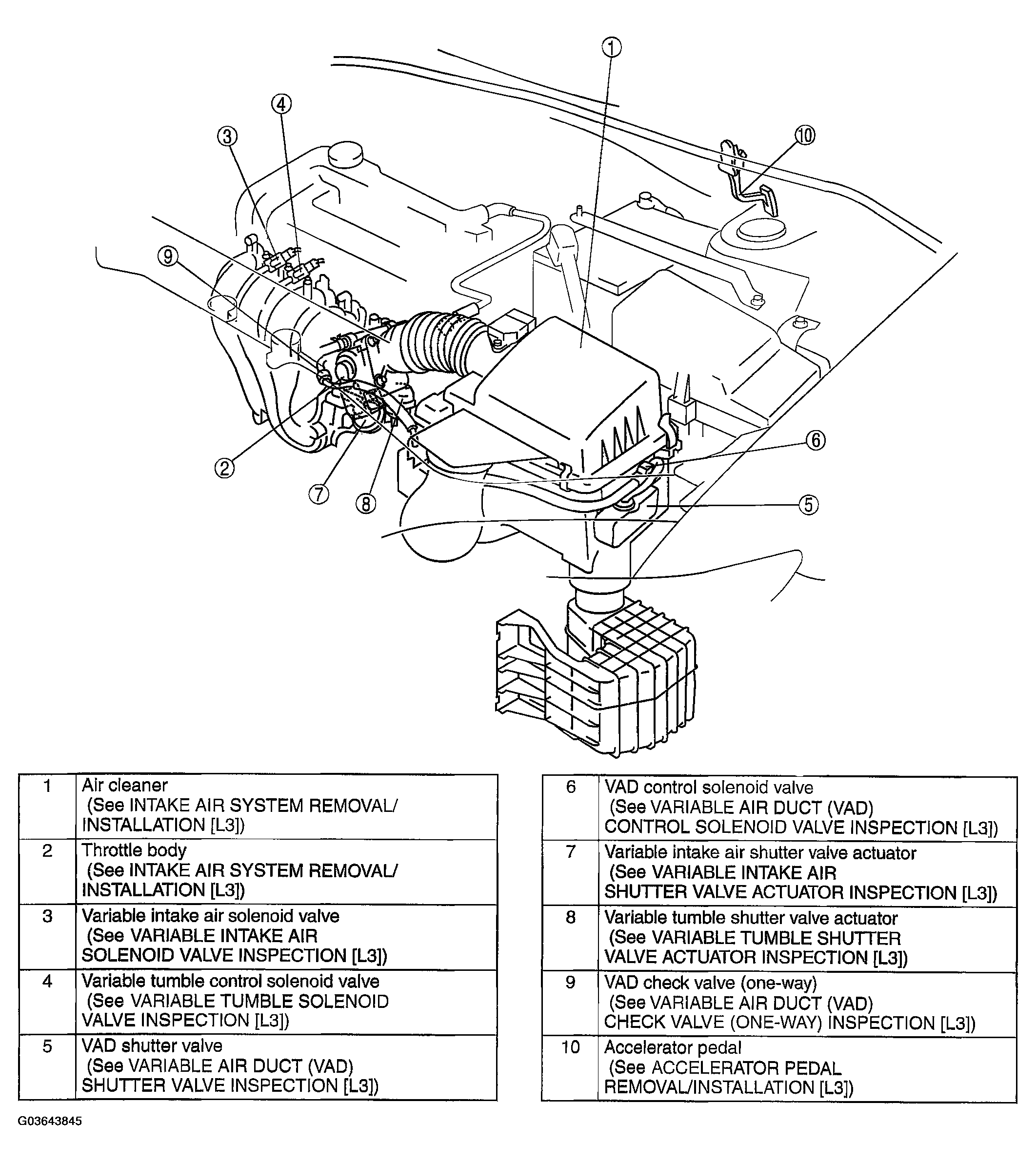

Fig 1: Identifying Intake Air System Components Location
G03643845Courtesy of MAZDA MOTORS CORP.
