Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

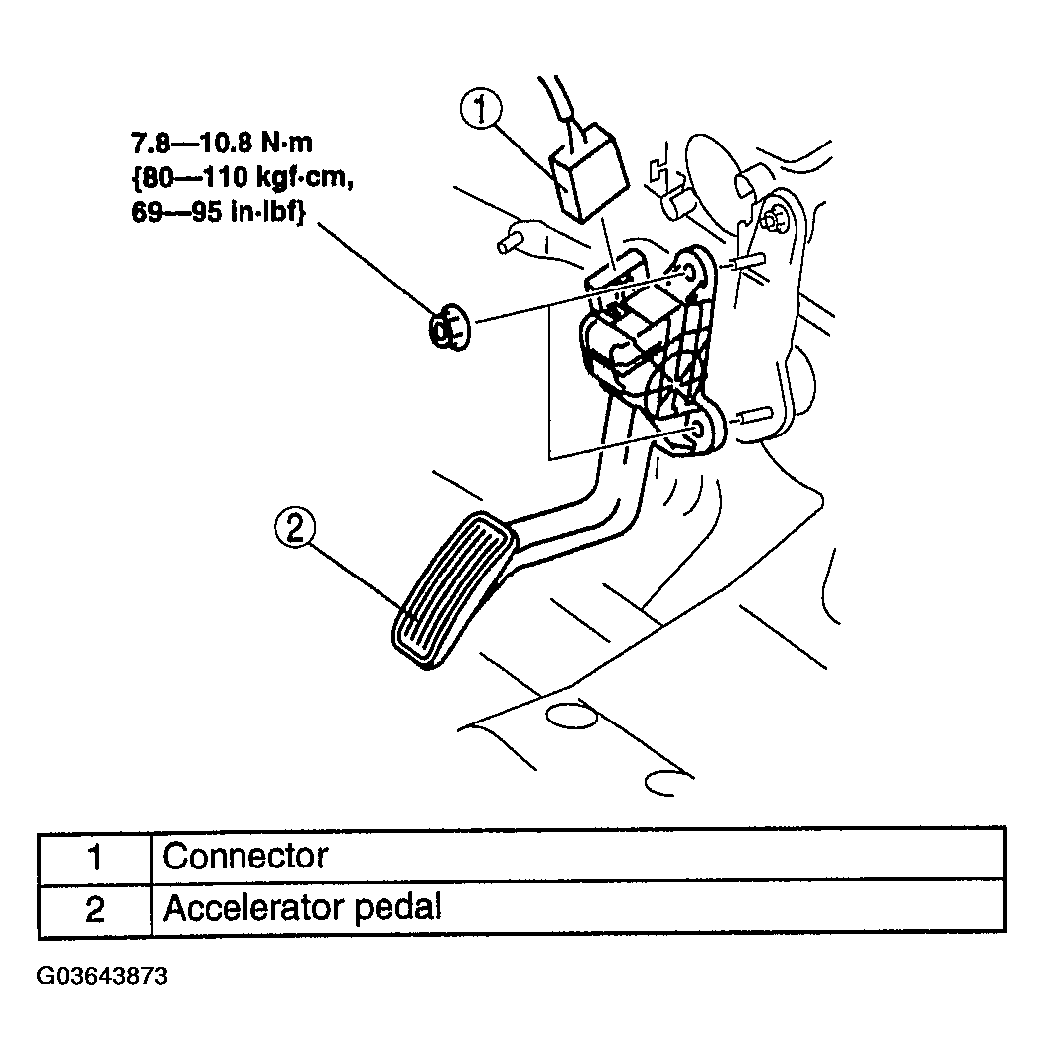

    Fig 1: Removing Accelerator Pedal (Torque Specs)
    G03643873Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
