Cooling Fan Removal/Installation: AJ

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION .)
Remove the cooler pipe stay. (See CONDENSER REMOVAL/INSTALLATION .)
Remove the oil hose stay. (ATX)
Disconnect the engine coolant reserve hose from the radiator.
Remove in the order indicated in the table.

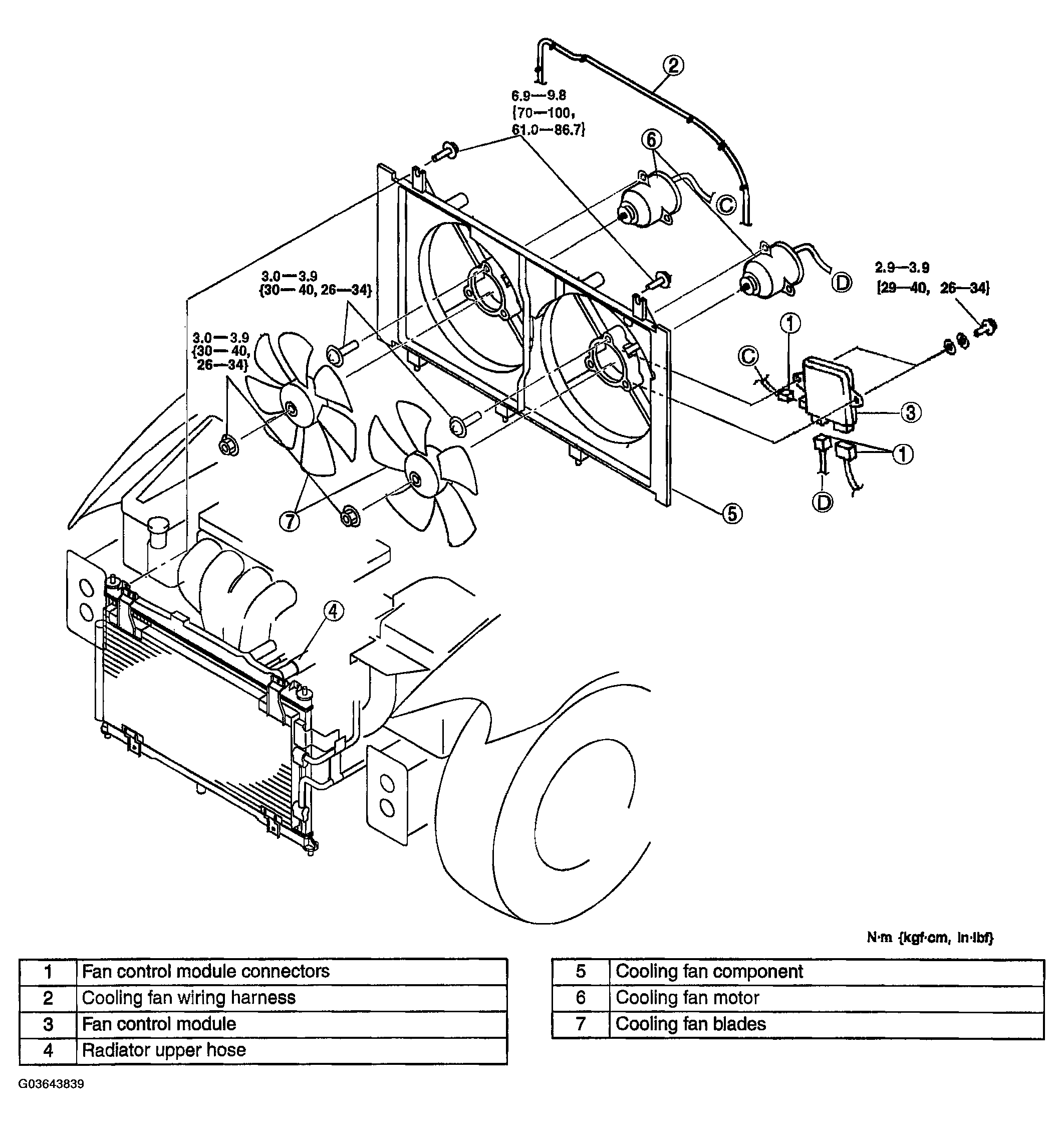

Fig 1: Removing Cooling Fan (AJ) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
