COMPONENT LOCATIONS

Component	Location
Brake Pedal Position Switch	See Fig 1
Engine Coolant Temperature Sensor	See Fig 2
Electronic Pressure Control Solenoid	Part Of Transmission Control Solenoid Body Assembly, Mounted To Valve Body
Output Shaft Speed Sensor	See Fig 3

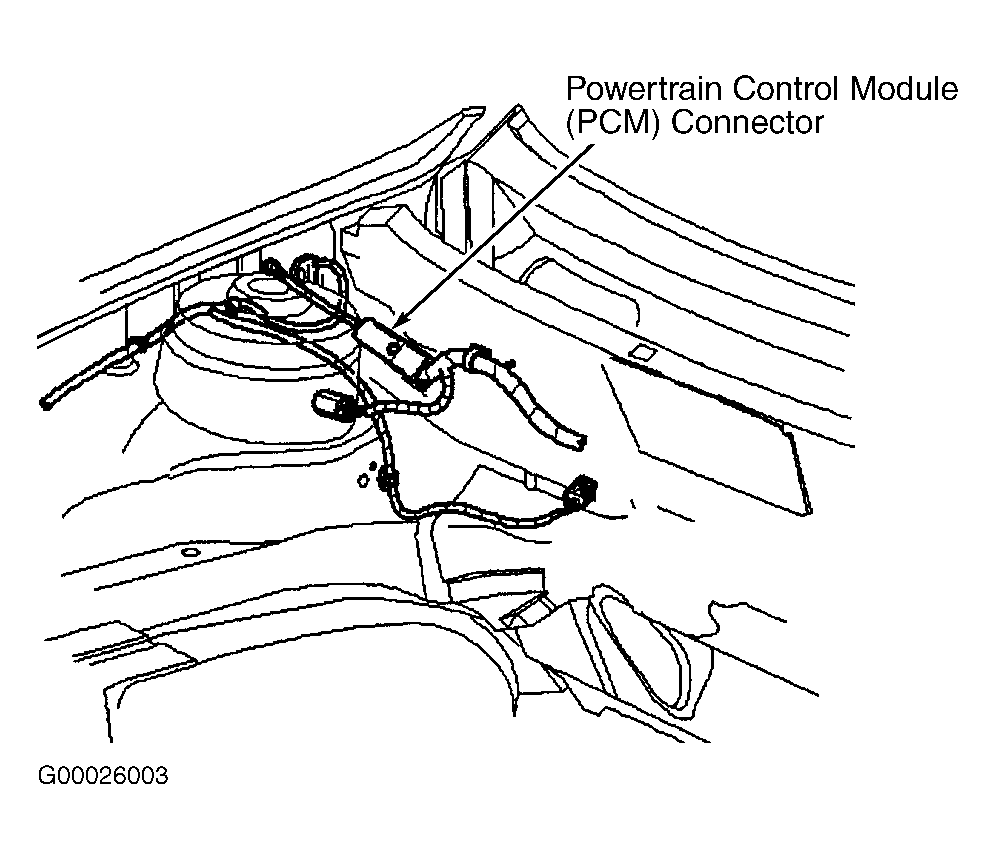

Powertrain Control Module	See Figure
Shift Solenoids (SS1, SS2 & SS3)	Part Of Transmission Control Solenoid Body Assembly, Mounted To Valve Body
Torque Converter Clutch Solenoid	Part Of Transmission Control Solenoid Body Assembly, Mounted To Valve Body
Throttle Position Sensor	See Fig 2
Transmission Fluid Temperature Sensor	Part Of Transmission Control Solenoid Body Assembly, Mounted To Valve Body
Transmission Range Sensor	See Fig 2
Turbine Shaft Speed Sensor	See Fig 2

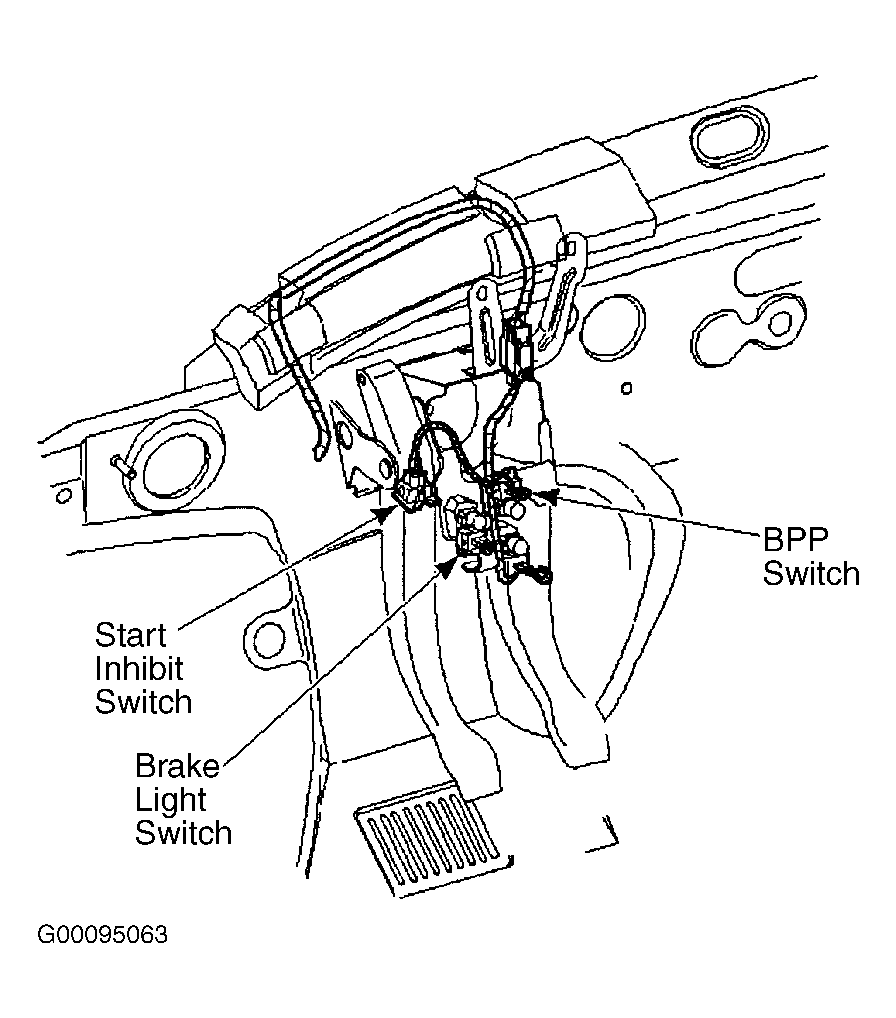

Fig 1: Locating Brake Pedal Switches

Courtesy of FORD MOTOR CO.

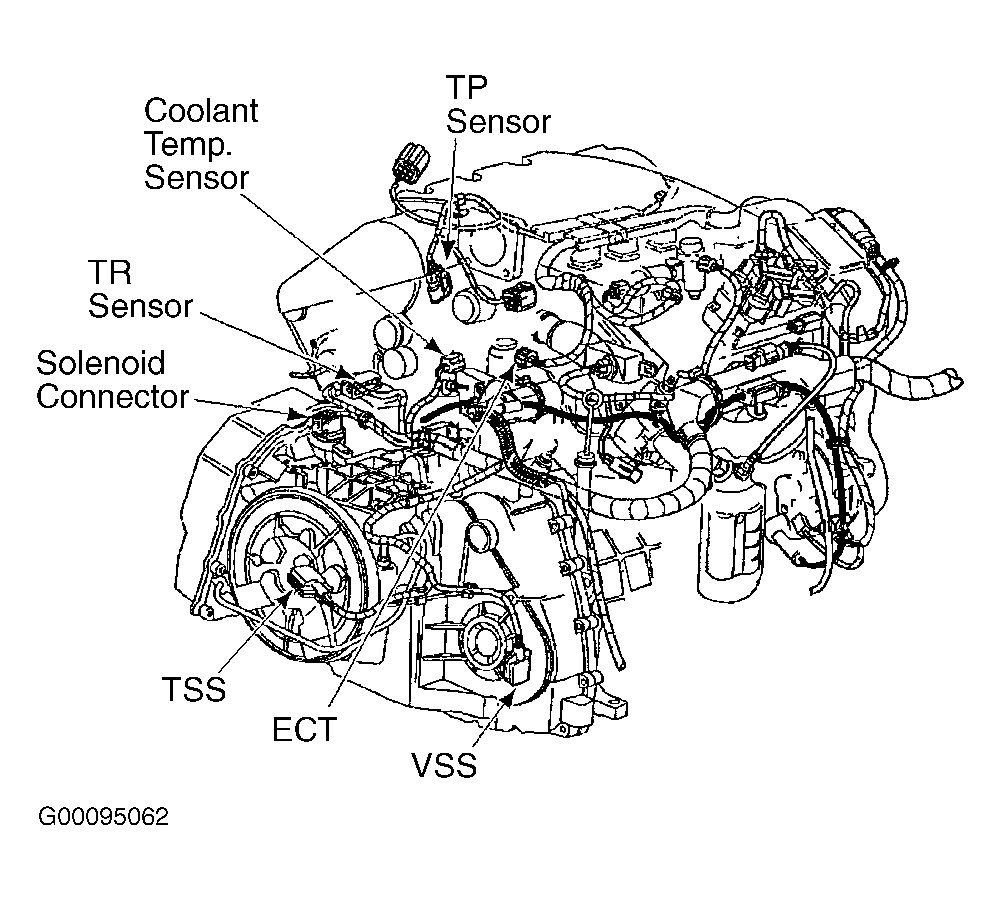

Fig 2: Locating Electronic Engine & Transaxle Components

Courtesy of FORD MOTOR CO.

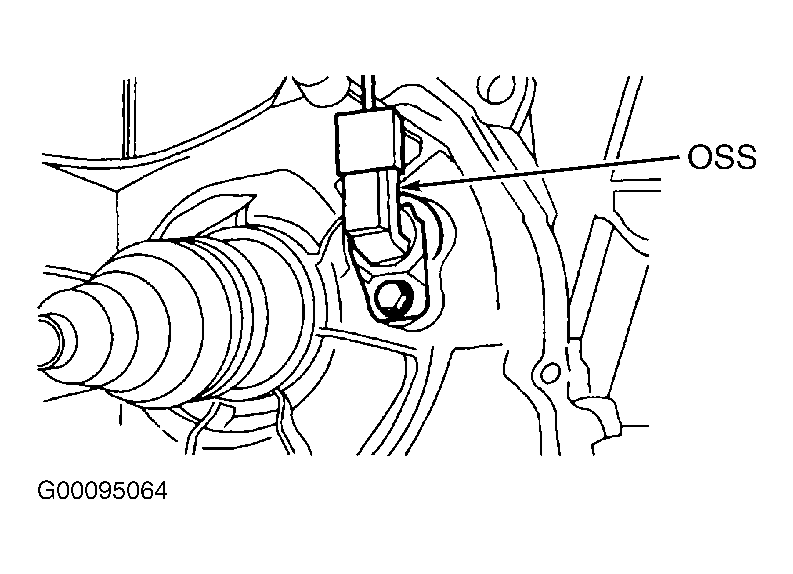

Fig 3: Locating Output Shaft Speed Sensor

Courtesy of FORD MOTOR CO.
