Oil Pump Removal Note (AJ)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the oil pump bolts in the order as shown in the figure.

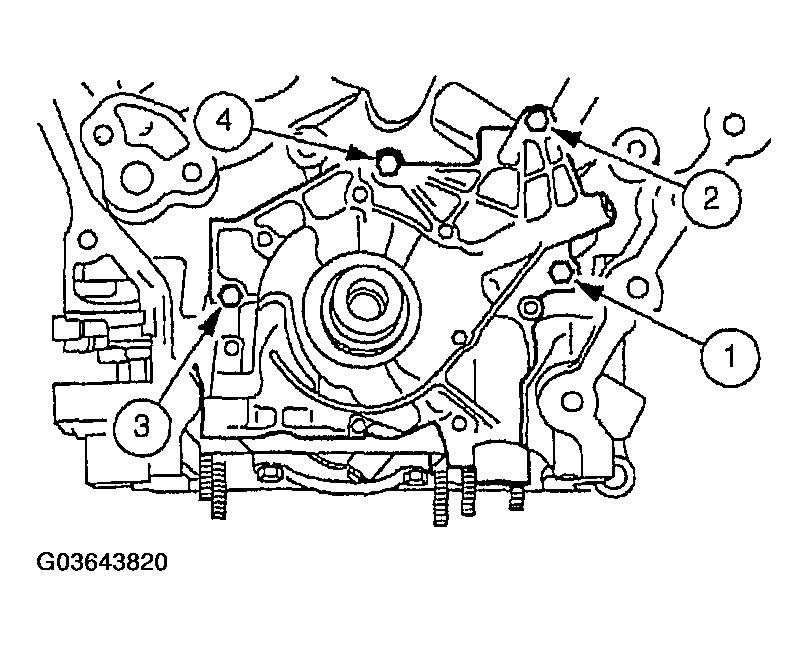

    Fig 1: Oil Pump Bolt Loosening Sequence
    G03643820Courtesy of MAZDA MOTORS CORP.
