Oil Pan Installation Note (L3)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

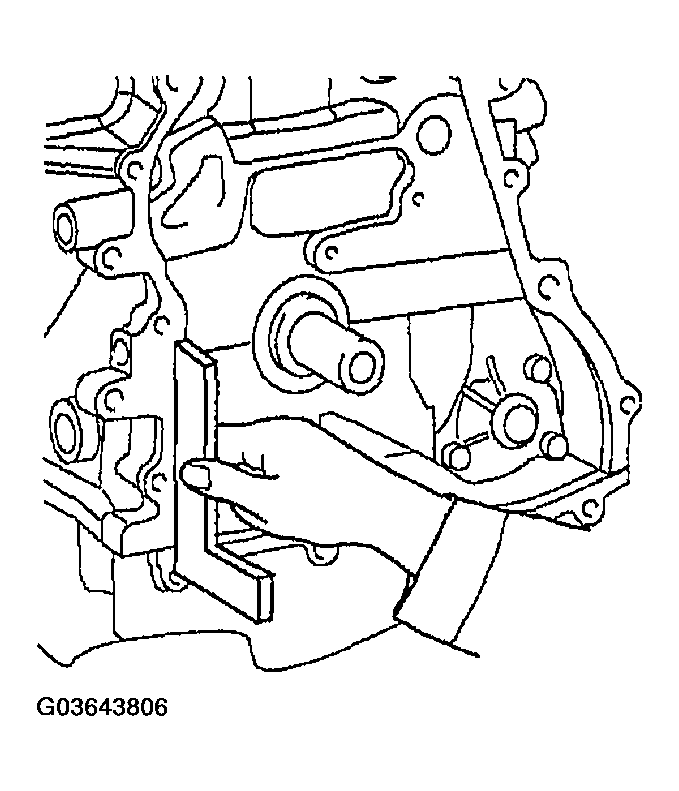

Use a square ruler to align the junction of the oil pan and the cylinder block on the engine front cover side.

Fig 1: Use A Square Ruler To Align Junction Of Oil Pan And Cylinder Block On Engine Front Cover Side
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the oil pan along the inside of the bolt holes.

Fig 2: Identifying Dimension Of Silicone Sealant Thickness
Courtesy of MAZDA MOTORS CORP.

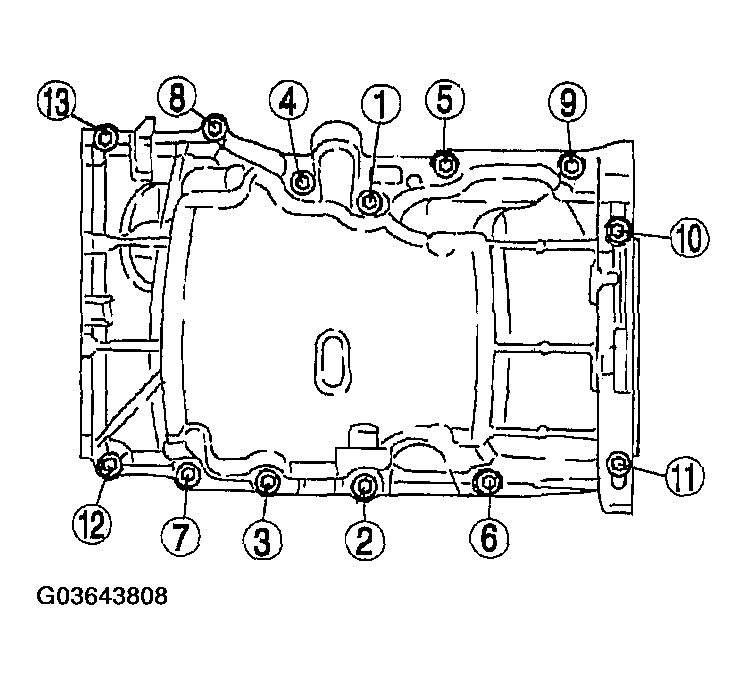

Tighten the bolts in the order as shown in the figure.

Fig 3: Oil Pan Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
