Oil Pan Installation Note (AJ)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

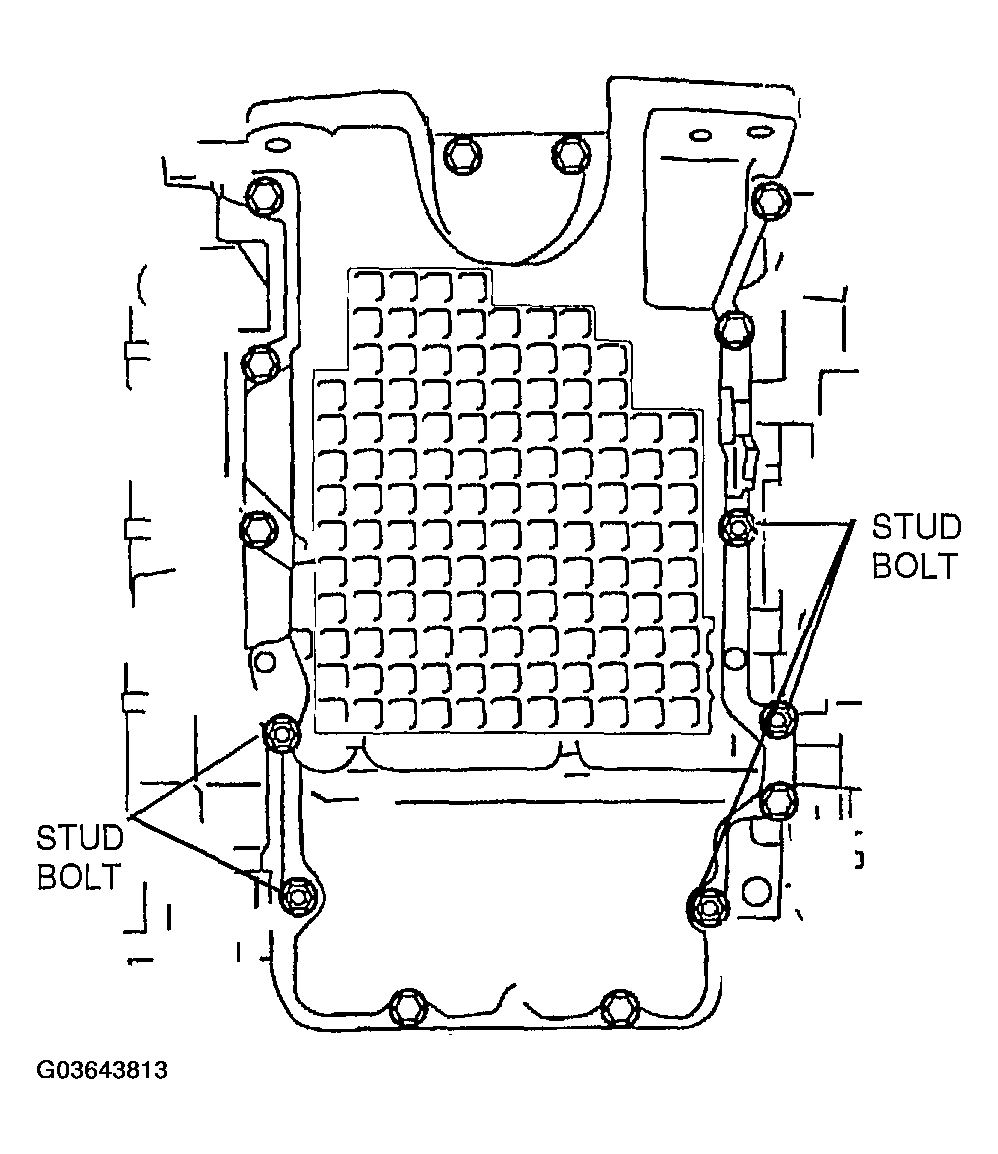

  1. Install the oil pan bolts and studs as shown in the figure.
    Fig 1: Locating Oil Pan Studs
    G03643813Courtesy of MAZDA MOTORS CORP.
  2. Tighten the transaxle housing bolts to oil pan.
    Fig 2: Tightening Transaxle Housing Bolts To Oil Pan
    G03643814Courtesy of MAZDA MOTORS CORP.

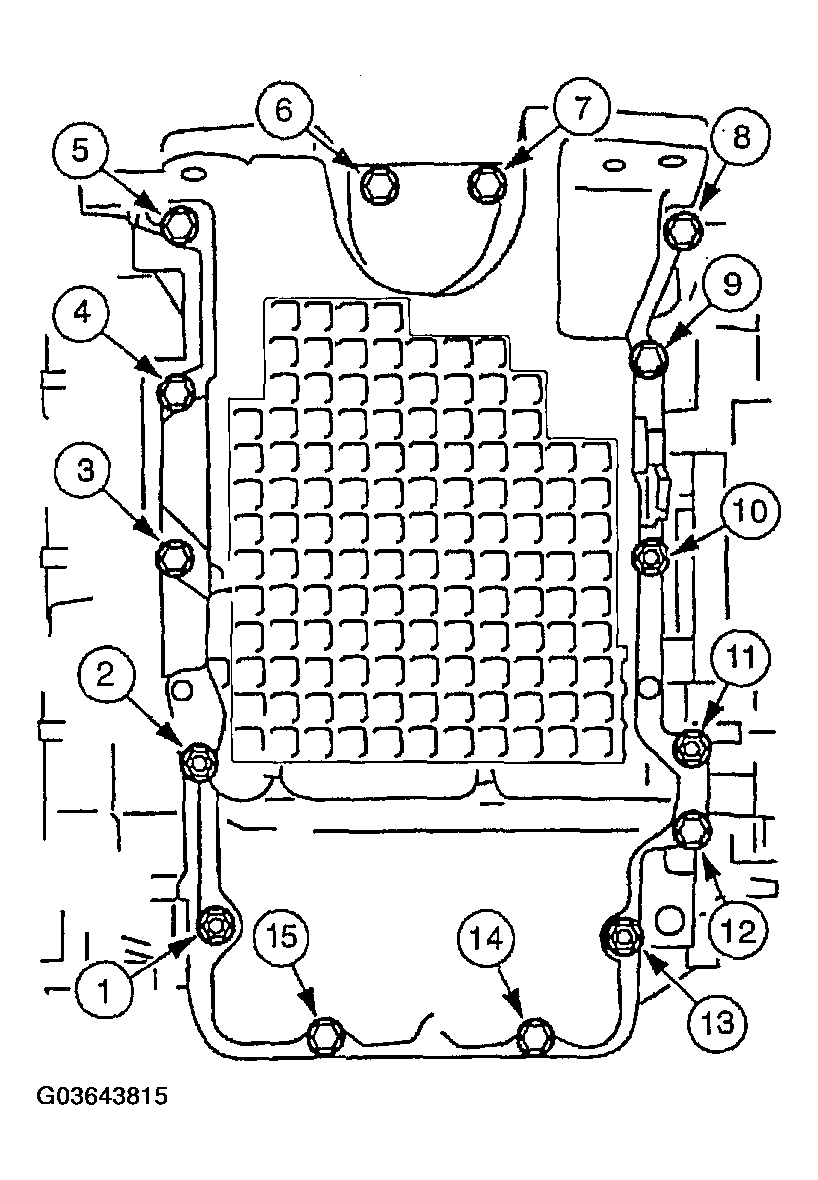

  3. Tighten the oil pan bolts and studs in several passes in the order as shown in the figure.
    Fig 3: Oil Pan Bolt And Stud Tightening Sequence
    G03643815Courtesy of MAZDA MOTORS CORP.
