Engine Oil Replacement: AJ

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on level ground.
  2. Remove the oil filler cap.
  3. Remove the under cover.
  4. Remove the oil pan drain plug.
  5. Drain the engine oil into a container.
  6. Inspect the rubber seal of the oil pan drain plug and make sure there are no cracks or damage.
    • If necessary, replace the oil pan drain plug.
  7. Clean the flange surface (seal rubber) on the oil pan drain plug, then install the oil pan drain plug.

    Tightening torque

    22-30 N.m {2.2-3.0 kgf.m, 16.3-21.6 ft.lbf}

    NOTE:
    • The amount of residual oil in the engine can vary according to the replacement method, oil temperature, etc. Verify the oil level after engine oil replacement.
  8. Refill the engine oil with the specified type and amount, then install the oil filler cap.
    OIL CAPACITY

    Item Specification - L {US qt, lmp qt}
    AJ
    Oil replacement 5.2 {5.5, 4.6}
    Oil and oil filter replacement 5.7 {6.0, 5.0}
    Total (dry engine) 6.2 {6.6, 5.5}

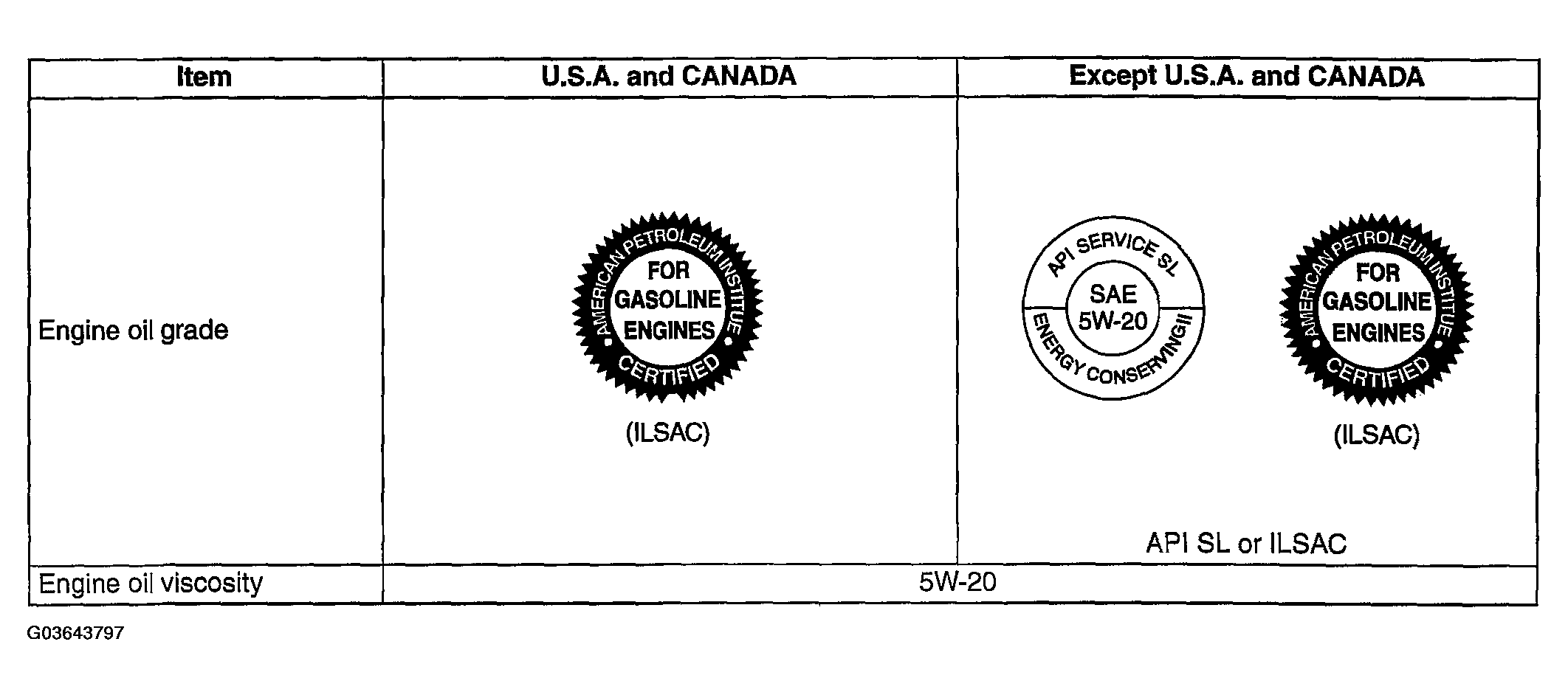

    Fig 1: Identifying Engine Oil Specification
    G03643797Courtesy of MAZDA MOTORS CORP.
  9. Start the engine and inspect for oil leakage.
    • If the oil leaks, specify the faulty part and repair or replace it.
  10. Inspect the oil level.
  11. Install the under cover.
