Timing Chain Component (LH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Rotate the crankshaft clockwise 1 and 2/3 turns until the keyway is in the 11 o'clock position.

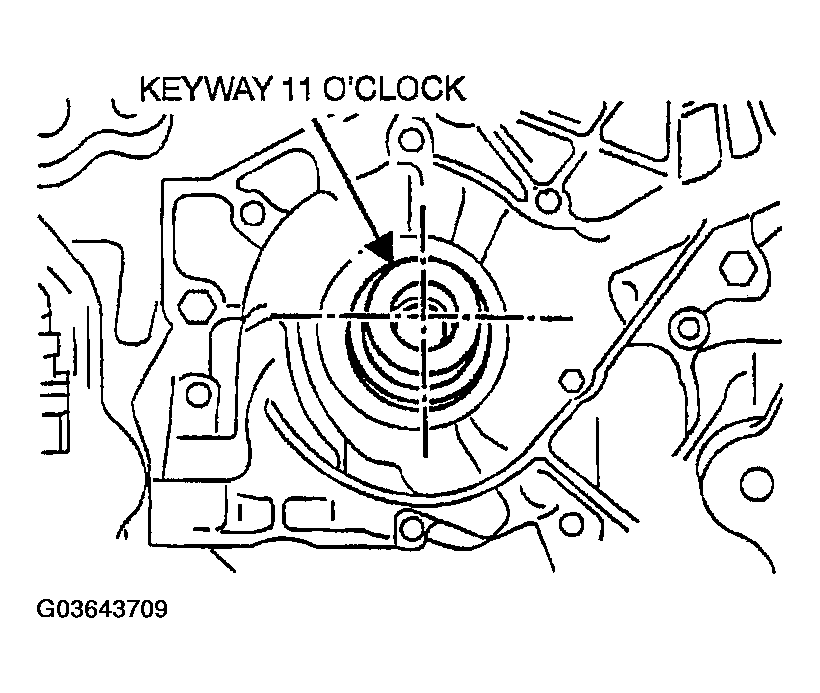

Fig 1: Positioning Crankshaft Keyway In 11 O'Clock Position
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the timing chain corresponding to each of the alignment marks on the timing sprocket.

Fig 2: Placing Alignment Marks On Timing Chain (LH)
Courtesy of MAZDA MOTORS CORP.
Remove the timing chain (LH) in the following order.
1. Chain tensioner
2. Tensioner arm
3. Timing chain
4. Chain guide
5. Timing chain crankshaft sprocket

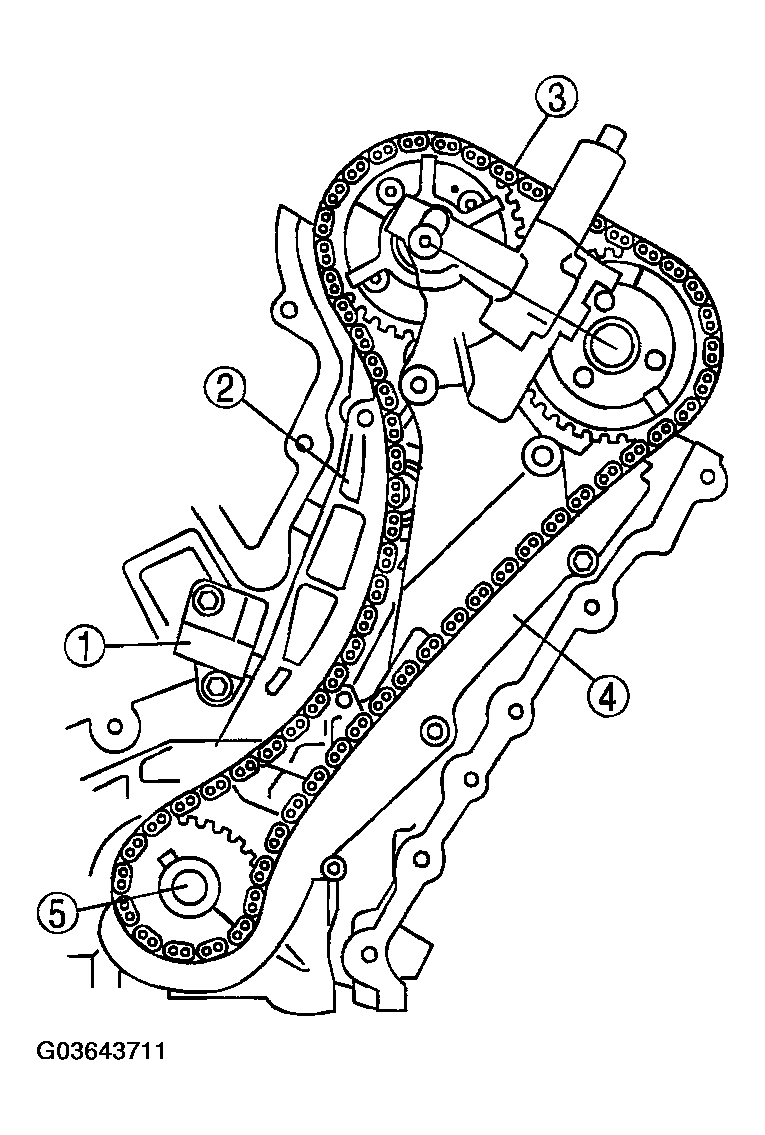

  Fig 3: Removal Order Of Timing Chain Components (LH)
  Courtesy of MAZDA MOTORS CORP.
