No. 3 Engine Joint Bracket Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine hanger (RH). (See ENGINE HANGER INSTALLATION NOTE .)
  2. Using the bolts part number 99794 1025  or M10x1.25, length 25 mm {0.984 in}  to Install the SST  as shown (LH Bank).

    Tightening torque

    100-125 N.m {10.2-12.7 kgf.m, 73.8-92.1 ft.lbf}

  3. Suspend the engine using the SSTs  .

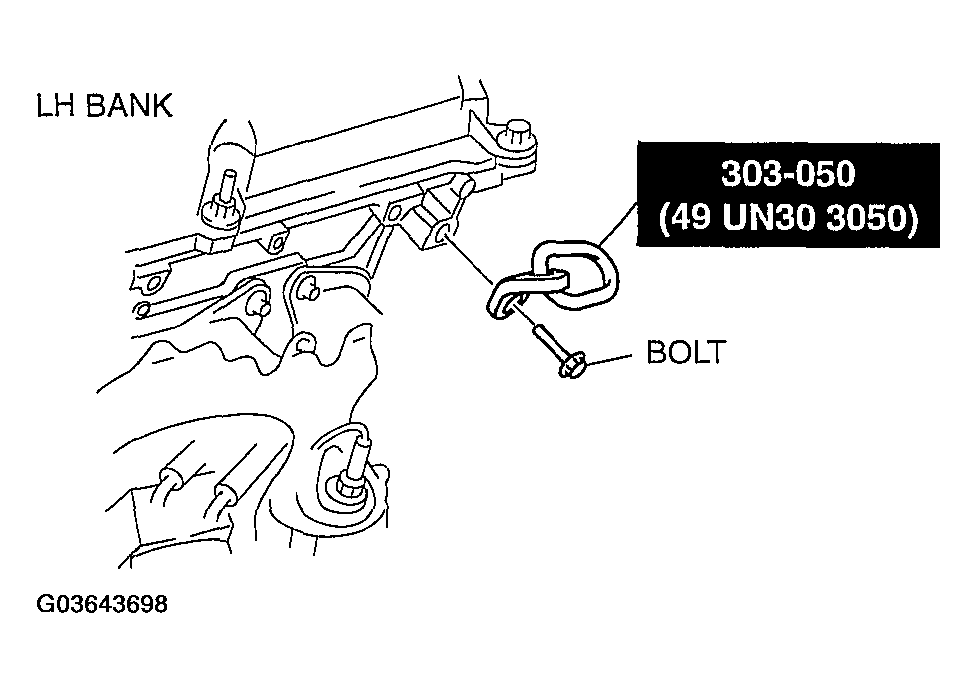

    Fig 1: Installing SST To LH Bank
    G03643698Courtesy of MAZDA MOTORS CORP.
  4. Remove the No. 3 engine joint bracket.
    Fig 2: Identifying SST
    G03643699Courtesy of MAZDA MOTORS CORP.
