Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolts and studs in the order shown.

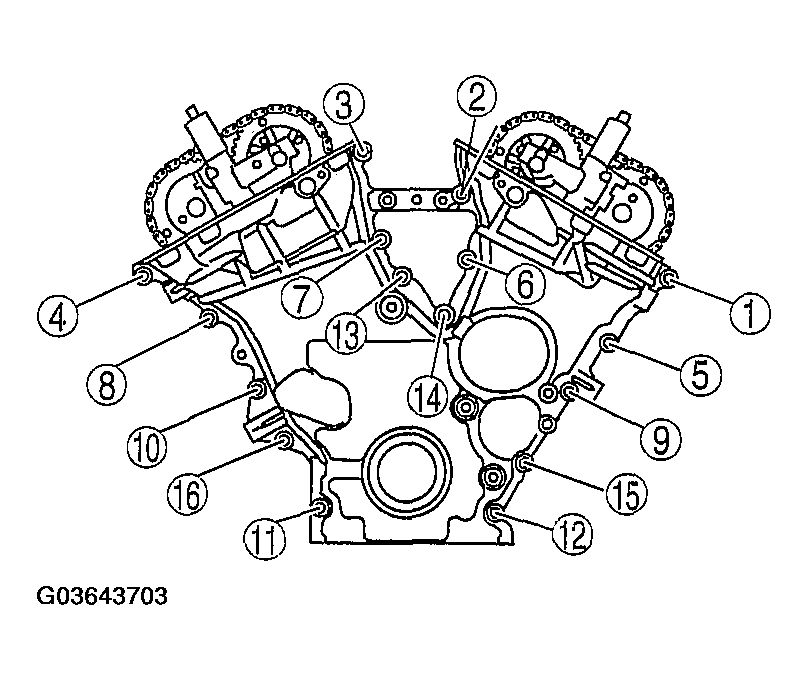

    Fig 1: Removal Order Of Engine Front Cover Bolts And Studs
    G03643703Courtesy of MAZDA MOTORS CORP.
