Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor with the pipes still connected.

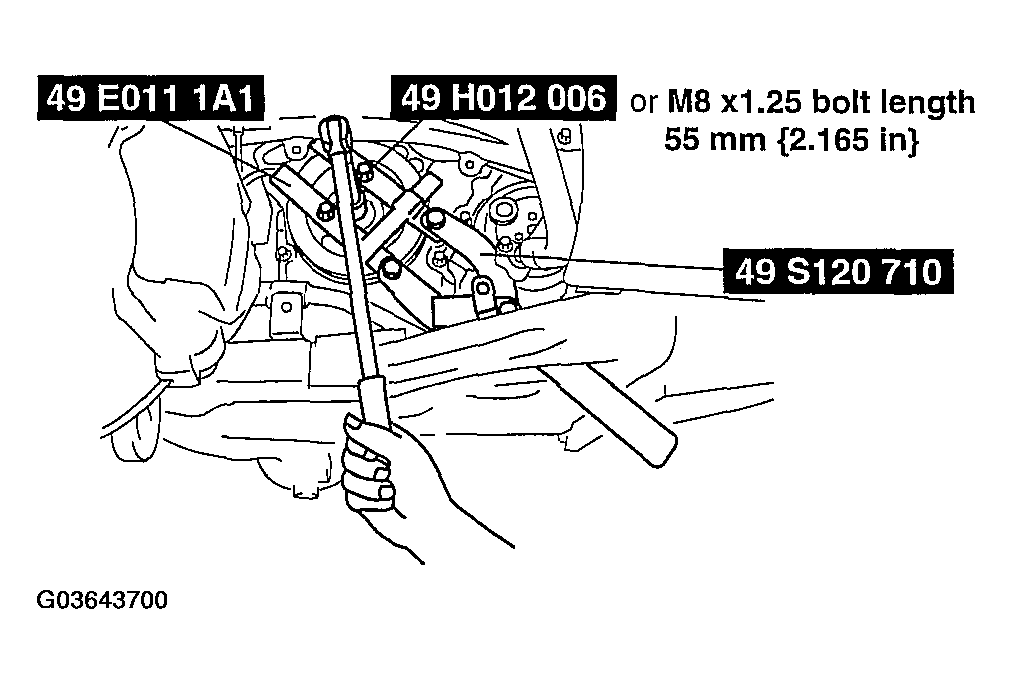

  2. Hold the crankshaft pulley using the SSTs  .
    Fig 1: Removing A/C Compressor With Pipes Still Connected
    G03643700Courtesy of MAZDA MOTORS CORP.
