Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
  3. Remove in the order indicated in the table.

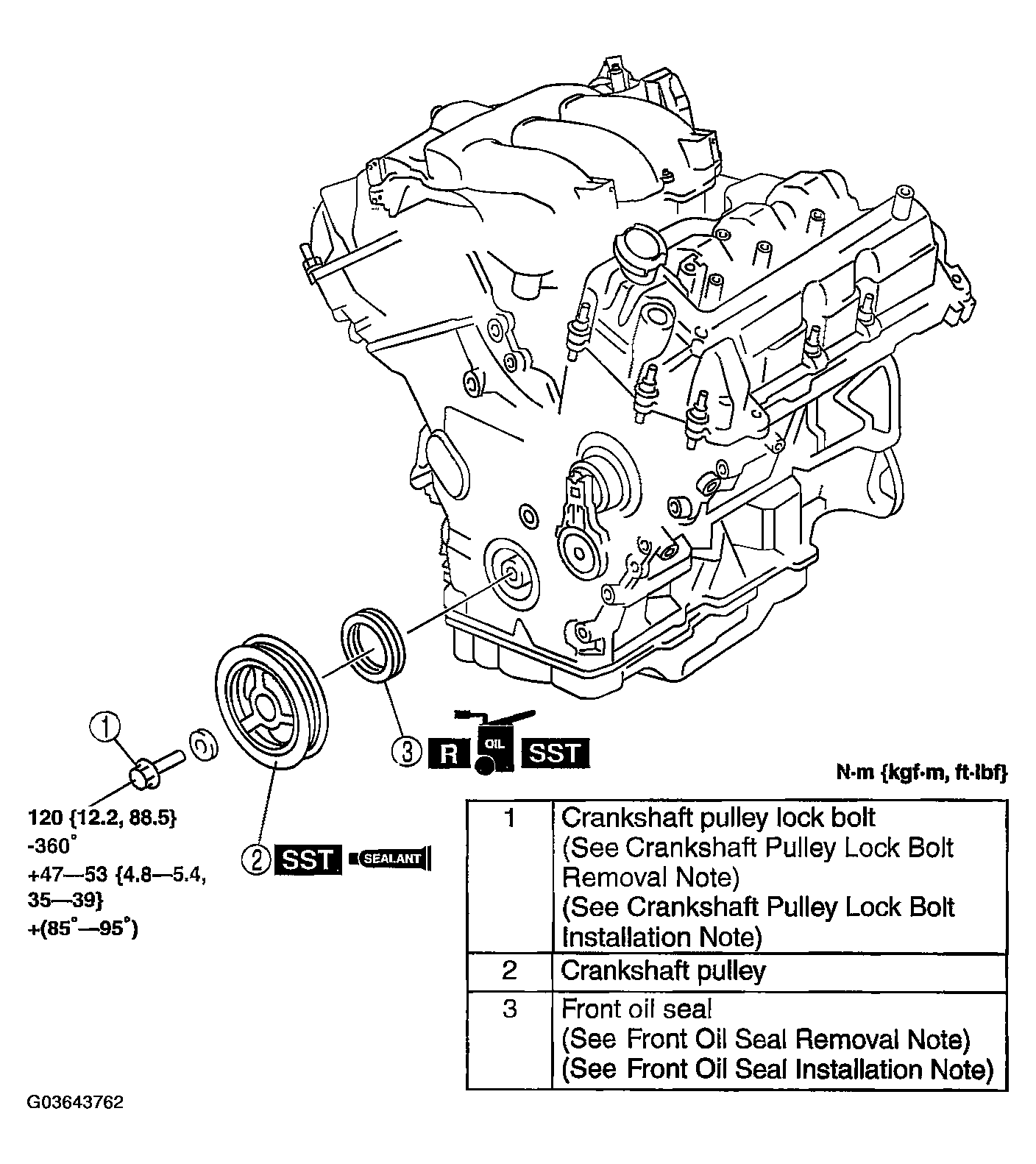

    Fig 1: Removing Front Oil Seal (Torque Specs)
    G03643762Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
