Front Drive Belt

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the under cover and splash shield (RH).
  2. Set a breaker bar on the center of the front drive belt auto tensioner pulley as shown.
  3. Using the breaker bar, turn the center of the front drive belt auto tensioner pulley Counterclockwise to release tension to the drive belt.

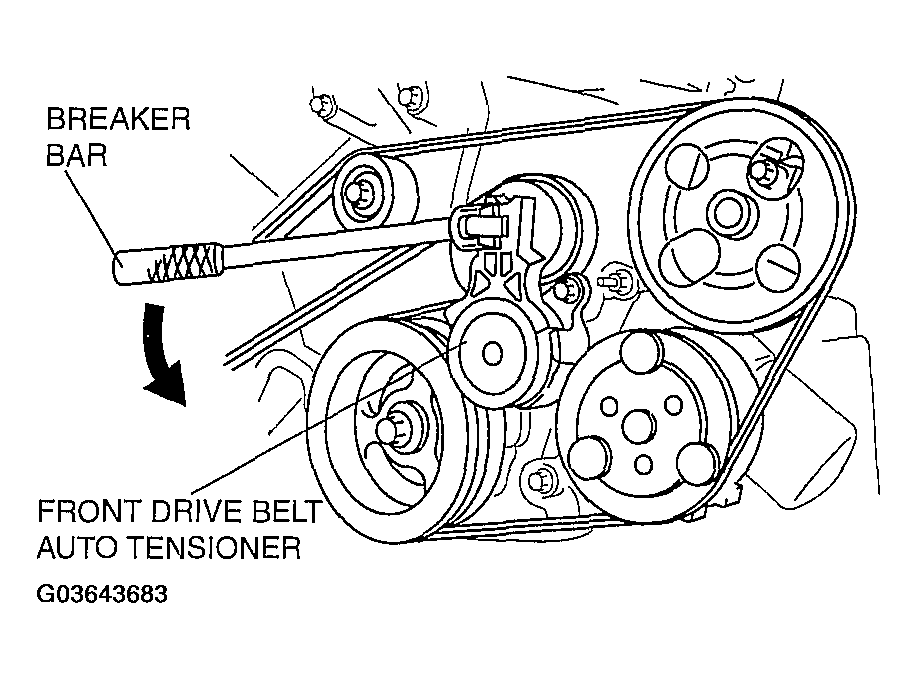

    Fig 1: Removing Front Drive Belt
    G03643683Courtesy of MAZDA MOTORS CORP.
  4. Remove the front drive belt.
  5. Reinstall the front drive belt or install a new front drive belt.
  6. Verify that the front drive belt auto tensioner indicator mark does not exceed the limit. (See FRONT DRIVE BELT .)
    • If it exceeds the limit, replace the front drive belt.
  7. Install the splash shield (RH).
