Water Bypass Tube Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water bypass tube stud bolt and bolt, and disconnect the water bypass tube from the cylinder head.

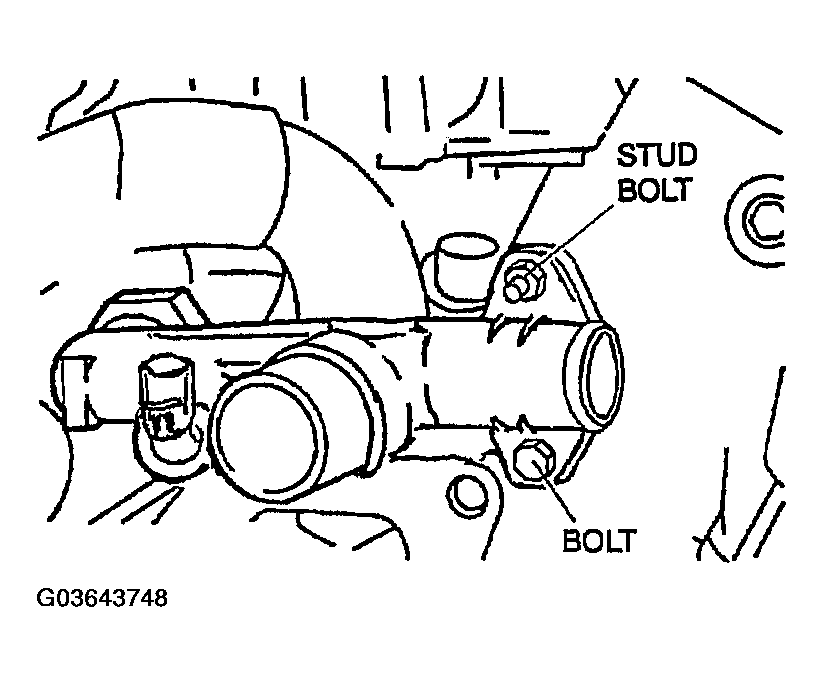

    Fig 1: Identifying Water Bypass Tube Stud Bolt And Bolt
    G03643748Courtesy of MAZDA MOTORS CORP.
