Timing Chain Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SST  to the camshaft as shown in the figure.
  2. Install the timing chain.
  3. Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.

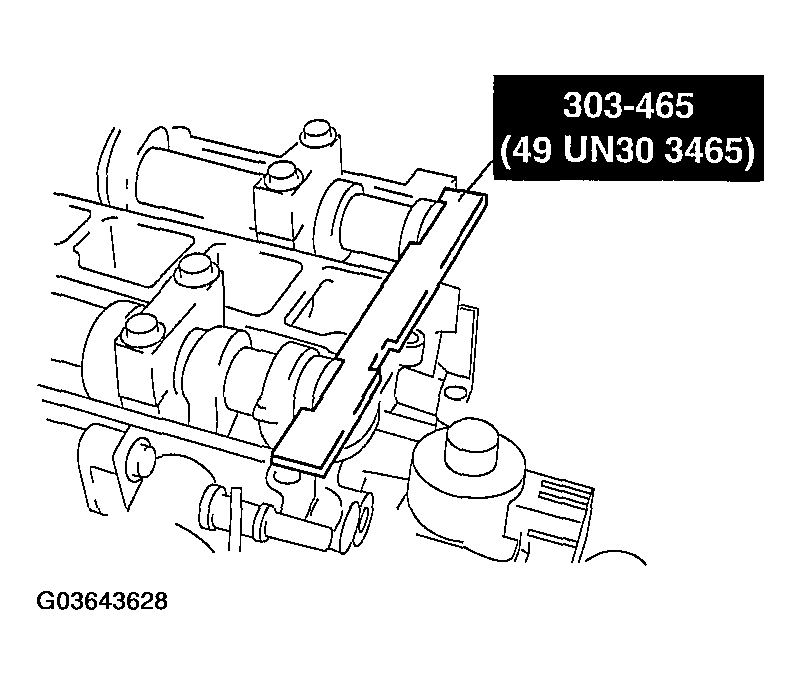

    Fig 1: Installing SST To Camshaft
    G03643628Courtesy of MAZDA MOTORS CORP.
