Oil Pump Sprocket Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the oil pump sprocket using the SST.

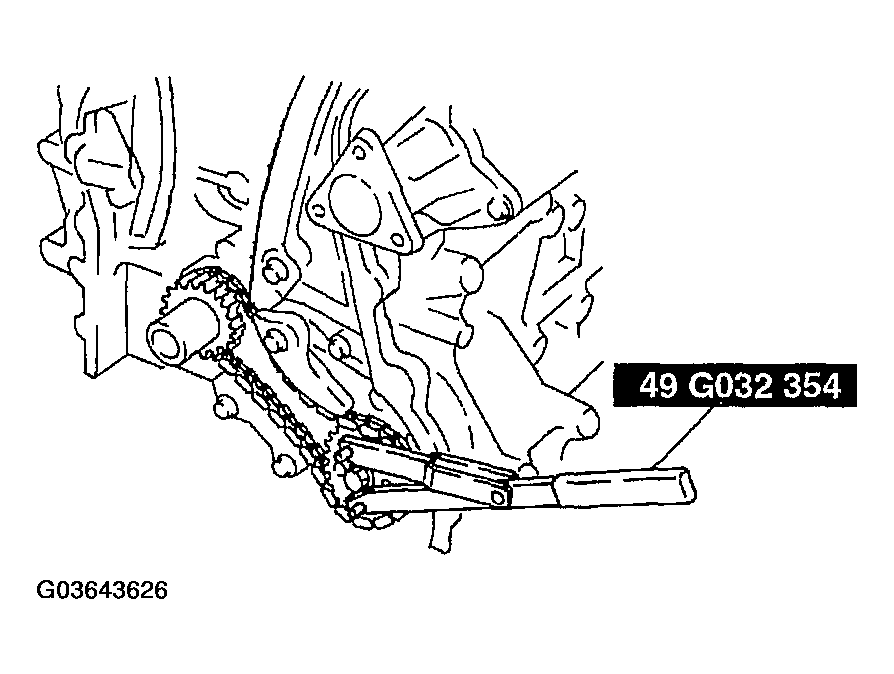

    Fig 1: Removing Oil Pump Sprocket Using SST
    G03643626Courtesy of MAZDA MOTORS CORP.
