Oil Pump Sprocket Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the oil pump sprocket using the SST  .

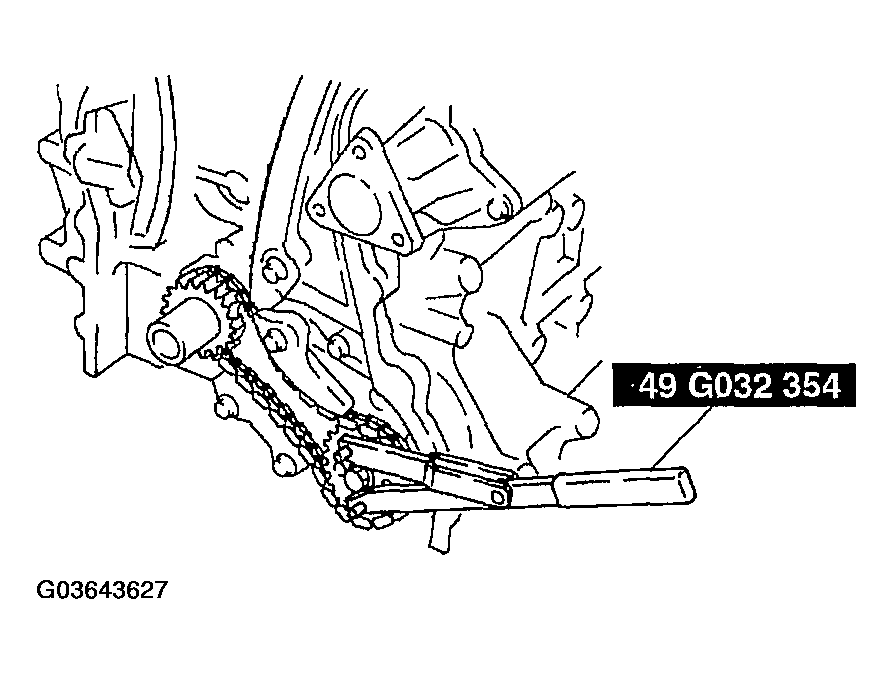

    Fig 1: Installing Oil Pump Sprocket
    G03643627Courtesy of MAZDA MOTORS CORP.
