No. 3 Engine Mount Rubber and No. 3 Engine Joint Bracket Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Suspend the engine using the SST.

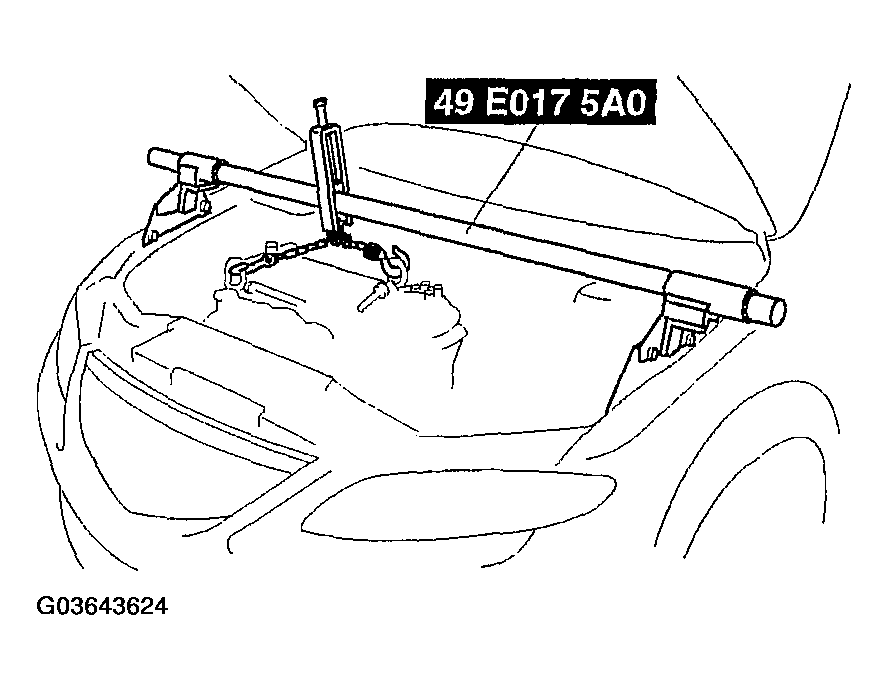

    Fig 1: Suspending Engine Using SST
    G03643624Courtesy of MAZDA MOTORS CORP.
