No. 3 Engine Mount Rubber and No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the stud bolt of the No. 3 engine mount bracket.

    Tightening torque

    7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

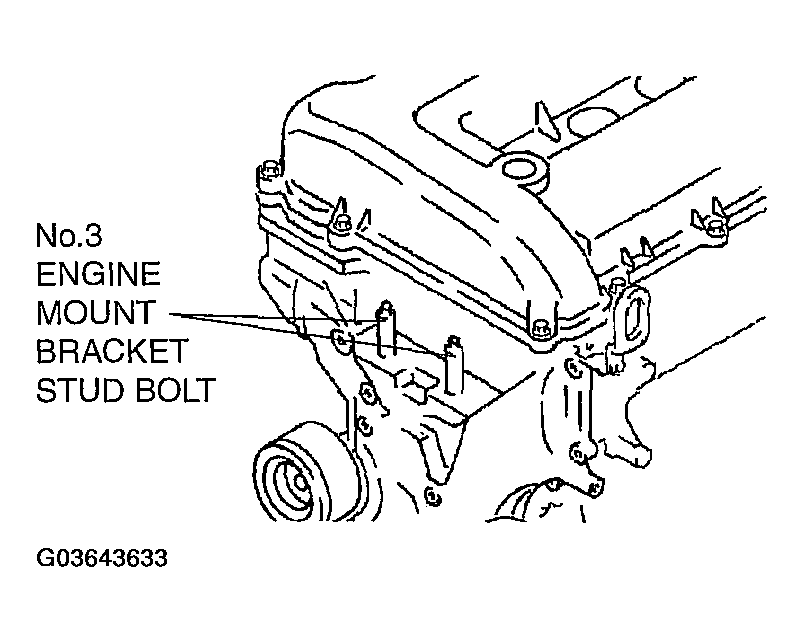

    Fig 1: Identifying Stud Bolts Of No. 3 Engine Mount Bracket
    G03643633Courtesy of MAZDA MOTORS CORP.
  2. Hand-tighten the No. 3 engine mount rubber and No. 3 engine joint bracket.
  3. Tighten the bolts and nuts in the order shown in the figure.
    Fig 2: Identifying Bolt And Nut Tightening Sequence
    G03643634Courtesy of MAZDA MOTORS CORP.
